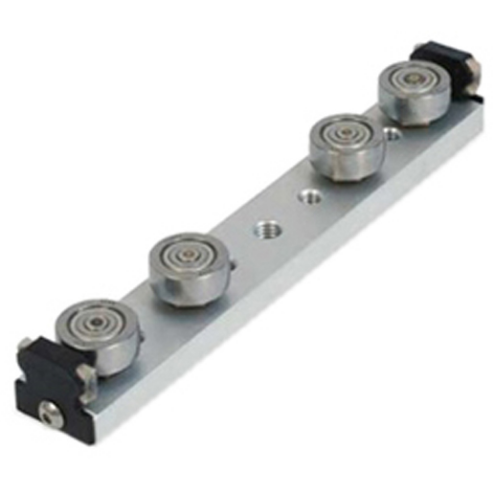

BISHOP-WISECARVER UT1WPAR-4A Carriage Assembly 20.7 x 24 x 166.5 Mm
Get it by Monday, Jun 16
€252.99 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Linear Guide Carriage Assembly |
| Carriage Height | 20.7 mm |
| Carriage Hole Size | M6 x 1.0 mm |
| Carriage Length | 166.5 mm |
| Carriage Material | Aluminum |
| Carriage Type | Crown Roller |
| Carriage Width | 24 mm |
| Grade | Grade 52100 |
| Max. Radial Load | 548 lbf. |
| Max. Speed | 5.5 mps |
| Roller Material | Steel |
| Roller Type | Crown Roller |
| Size | 1" |
| Slide Height | 25.3 mm to 27.6 mm |
| Slide Hole Size (mm) | 9.8 mm x 2.8 mm |
| Temp. Range | -55°C to +100°C |
| Type | SW Series |
| Carriage Finish | Anodized |
| Dynamic Load Capacity | 549 lbf. |
| For Rail Size | Size 1 |
| For Rail Width | 26 mm |
| For Use With | Vee Profile |
| Lubrication | Lubricant Required |
| Maximum Axial Static Load | 0 lbf. |
| Maximum Operating Temperature | 212°F |
| Maximum Radial Static Load | 549 lbf. |
| Maximum Speed | 5.5 mps |
| Minimum Operating Temperature | -67°F |
| Number Of Mounting Holes | 2 |
| Number Of Rollers | 4 |
| Overall Height | 27.6 mm |
| Product Type | Ball |
| Roller Finish | Anodized |
| Series | SW Series |
| Static Load Capacity | 549 lbf. |
| Ship weight (kg) | 0.19 |
| Ship height (cm) | 2.07 |
| Ship length (cm) | 16.65 |
| Ship width (cm) | 2.4 |
| Country of Origin | US |
| Product | Model | Max. Load Axial | Max. Load Radial | Max. Speed | Roller Material | Roller Type | Size | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
UT1WPA | 162 Lbf. | 548 Lbf. | 5.5 m/sec. | 52100 Steel | Vee | 1" | €196.32 | |
 |
UT1WPA-4A | 194 Lbf. | 548 Lbf. | 5.5 m/sec. | 52100 Steel | Vee | 1" | €246.03 | |
 |
UT1WPA-5A | 228 Lbf. | 652 Lbf. | 5.5 m/sec. | 52100 Steel | Vee | 1" | €274.39 | |
 |
UT1WPAR | - | 548 Lbf. | 5.5 m/sec. | 52100 Steel | Crown Roller | 1" | €147.99 | |
 |
UT1WPAR-5A | - | 652 Lbf. | 5.5 m/sec. | 52100 Steel | Crown Roller | 1" | €260.67 | |
 |
UT2WPAR | - | 1191 Lbf. | 5.5 m/sec. | 52100 Steel | Crown Roller | 2" | €218.22 | |
 |
UT2WPAR-4A | - | 1191 Lbf. | 5.5 m/sec. | 52100 Steel | Crown Roller | 2" | €269.23 |
