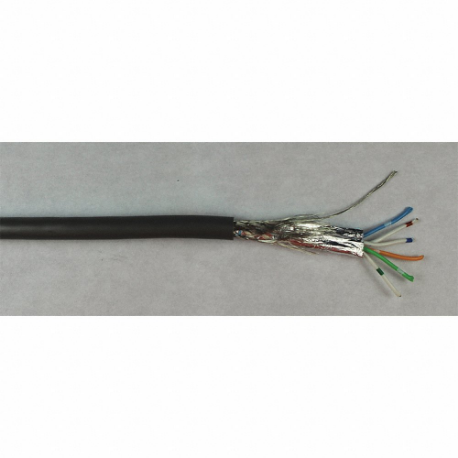

BELDEN 8103 0601000 Communication Cable, Shielded, 6 Conductors - Data Cable, Stranded, Silver
Get it by Monday, Jun 16
€6,554.18 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Communication Cable |
| Application | Computer Systems |
| Conductor Size | 24 AWG |
| Fire Rating (data Cable) | Commercial |
| Insulation Material | Foam Polyethylene |
| Jacket Color | Silver |
| Jacket Material | PVC |
| Nec Article, Type | 800 CM |
| Nominal Outside Dia. | 0.283" |
| Number Of Conductors | 6 |
| Package Type (data Cable) | Reel In A Box |
| Shielded | Yes |
| Shielding Material | Foil |
| Spool Length | 1000 ft. |
| Stranded / Solid | Stranded |
| Suggested Voltage Rating (data Cable) | 300V |
| Temp. Range | -22°F to +176°F |
| Bend Radius | 2 3/4" |
| Cable Length | 1000 ft. |
| Conductor Gauge | 24 AWG |
| Fire Rating | Commercial |
| Maximum Capacitance | 12.5 pF/ft. (Nominal Capacitance Conductor to Conductor), 22 pF/ft. (Nominal Capacitance Conducotr to Other (Conductor + Shield)) |
| Maximum Current | 1.5A |
| Maximum Impedance | 100 ohms |
| Maximum Operating Temperature | 176°F |
| Maximum Voltage Rating | 300V |
| Minimum Operating Temperature | -22°F |
| Nec Article And Type | 800 CM |
| No. Of Conductors | 6 |
| No. Of Pairs | 3 |
| Number Of Strands | 32 |
| Outside Diameter | 0.3" |
| Package Type | Reel In A Box |
| Pairing | Paired |
| Product Type | Communication Cable |
| Resistance Properties | Flame/Fire Resistant, Impact Resistant |
| Solid/stranded | Stranded |
| Standards | APAC COMPLIANCE-CHINA ROHS COMPLIANT II (GB/T 26572-2011), AWM 2919, CEC / C(UL) COMPLIANCE-CM, CPR EUROCLASS: ECA, CPR UKCA CLASS: ECA, EU CE MARK, EU DIRECTIVE 2011/65/EU (ROHS 2), EU DIRECTIVE 2012/19/EU (WEEE), NEC ARTICLE 800 CM, UKCA MARK, UL 1685 FT4 LOADING, IEC 60332-1-2 |
| Ship weight (kg) | 21.6 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
9409 0601000 | Communication Cable | €2,894.38 | |
 |
8205 0601000 | Communication Cable | €1,699.32 | |
 |
82489 8771000 | Communication Cable | €7,582.55 | |
 |
82760 8771000 | Communication Cable | €5,298.10 | |
 |
87761 0021000 | Communication Cable | €4,306.65 | |
 |
88761 0021000 | Communication Cable | €5,771.58 | |
 |
88760 0021000 | Communication Cable | €6,108.03 |
