| Item | Calibration Certificate |
| Bandwidth | 100 MHz |
| Calibration Certificate | Yes |
| Channels | 4 |
| Cursors & Zoom | Ranges From Full Record Overview To Zoom In Up To Sample Level At Any Record Length |
| Display Size | 10.1" |
| Display Type | Capacitive Touchscreen LCD |
| Features | A Built-In Dds Waveform Generator Outputs Waveforms With Maximum Frequencies Of 50 Mhz And ±3 V Amplitude., Optional Mso Feature Adds 16 Digital Channels Allowing The Acquisition And Triggering Of Mixed Signal Waveforms., Serial Bus Decoding Supports I2C, Spi, Uart, Can, And Lin Protocols., Sine, Square, Ramp, Pulse, Noise, DC And Arbitrary Waveforms Are Available., USB (Usbtmc-Compliant) And Lan Interfaces Included. |
| Fft Analysis | FFT Analysis With Selectable Memory From 2 KPTS Of 2 MPTS |
| Glitch Capture | 1 NS Peak Detect On Each Channel |
| Includes | Four Passive Probes (One Per Channel), Power Cord, USB Cable, Certificate Of Calibration |
| Input Sensitivity | 1 M©: 500 µv/Div To 10 V/Div, 50 ©: 500 µv/Div To 1 V/Div |
| Interface | LAN, USB |
| Max. Record Length | 200 Mpts/Ch, 100 Mpts/Ch |
| Real Time Clock | Yes |
| Safety Rating | Cat I, 400 VPK Max |
| Sampling Rate | 2 GSA/S, 1 GSA/S |
| Triggering Mode | Auto, Dropout, Edge, Interval, Normal, Pattern, Pulse Width, Runt, Serial, Single, Slope, Video, Window |
| True Rms | Yes |
| Waveform/measurement Stored | History Mode Can Store Up To 90, 000 Triggered Waveforms., Store And Recall Waveform Data, Setups And Screenshots On A USB Flash Drive |
| Ac Magnitude Calculation | True RMS |
| Ac Voltage Measurement - Maximum | 400V AC |
| Ac Voltage Measurement - Minimum | 10 mV AC |
| Body Style | Bench |
| Calibration Certificate Type | NIST |
| Cat Safety Rating | CAT I 400V |
| Channel Source Isolation | Non-Isolated |
| Dc Voltage Measurement - Maximum | 400V DC |
| Dc Voltage Measurement - Minimum | 10 mV DC |
| Digital Display Screen Type | TFT LCD |
| Display Screen Length | 10.1" |
| Input Sensitivity - Maximum | 10V/div |
| Input Sensitivity - Minimum | 500 µV/div |
| Key Features | Data Logging, FFT Analysis, Zoom |
| Manufacturers Warranty Length | 3yrs. |
| Memory Depth | 100 Mpts/Ch (Non-Interleaving Mode), 200 Mpts/Ch (Interleaving Mode) |
| Number Of Channels | 4 |
| Sound Level Measurement - Maximum | 40 dB |
| Standards | CERTIFICATE NUMBER 6Z241-IS8, CERTIFICATION BODY NSF-ISR, ISO 9001:2015 |
| Time Base - Maximum | 1000 sec./div |
| Time Base - Minimum | 1 nsec/div |
| Ship weight (kg) | 5.4 |
| Country of Origin | CN |
| Product | Model | Price | |
|---|---|---|---|
|

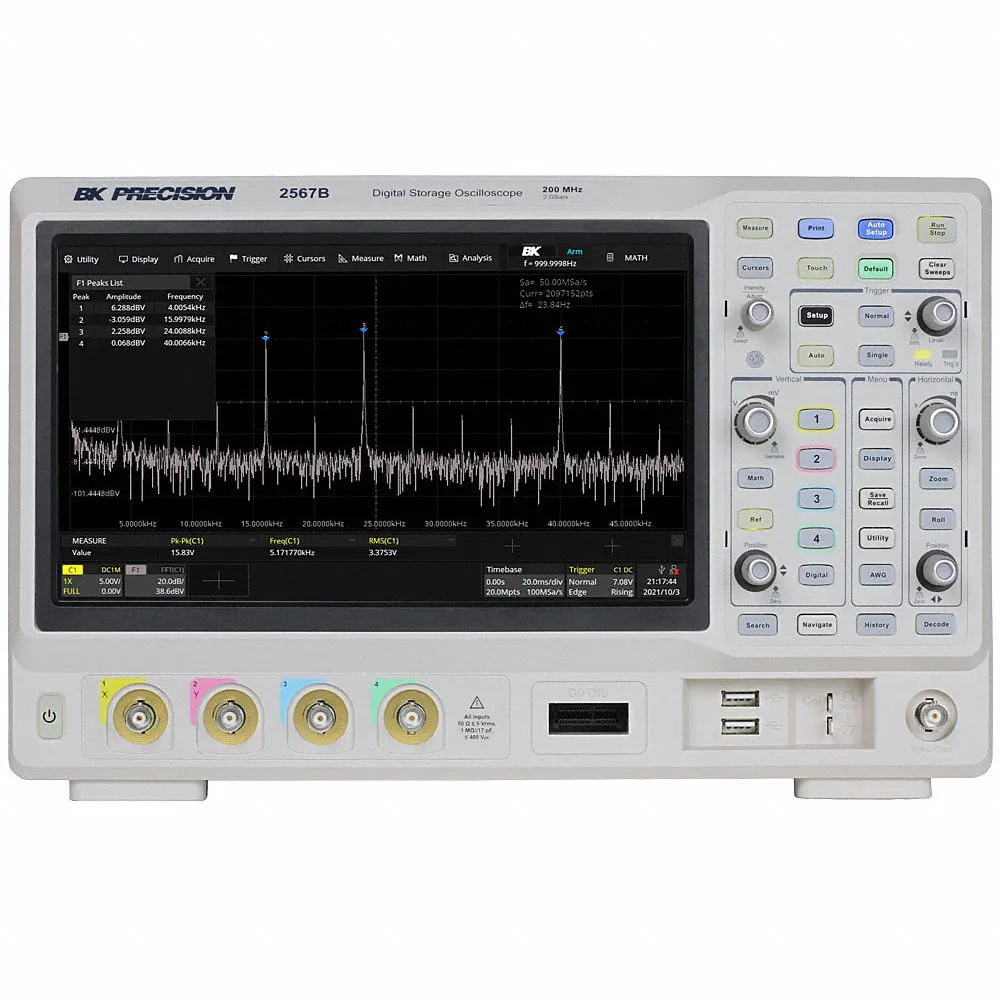

2567B | €3,881.50 |
