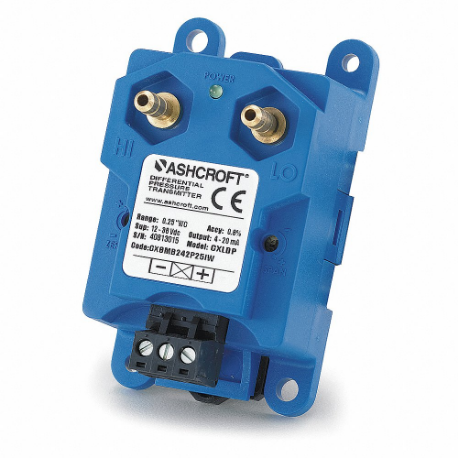

| Item | Transmitter |
| Accuracy | -0.8% to +0.8% |
| Burst Pressure | 25 psid |
| Compatible With | Clean Dry Non-Corrosive Gasses |
| Electrical Connection | Screw Terminals |
| Enclosure Rating | NEMA 1 |
| Features | Detachable Euro Style Terminal Block, Hysteresis, Non-Repeatability, Rugged Abs Package Capable Of Din Rail Or Panel Mounting, Zero Offset And Span Setting Errors |
| Fitting Material | Brass |
| Housing Material | ABS |
| Includes | Instructions |
| Max. Operating Temp. | 160°F |
| Max. Pressure | 0.25 in. wc |
| Mfr. Series | CXLDP Series |
| Min. Operating Temp. | 0°F |
| Min. Pressure | 0 in. wc |
| Mounting Application | For DIN Rail-Mounting |
| Nema Rating | NEMA 1 |
| Nist Traceable Certificate | No |
| Number Of Wires | 2 |
| Output | 4-20 mA |
| Overall Height | 3.33" |
| Overall Length | 1.89" |
| Overall Width | 1 8/25" |
| Overpressure | 15 psid |
| Power Required | 12-36V DC |
| Pressure Range | 0 in. wc to 0.25 in. wc |
| Pressure Units | In Wc |
| Process Connection Gender | Male |
| Process Connection Size | 1/4" |
| Process Connection Size - Transmitter | 1/4" |
| Process Connection Type | Hose Barb |
| Range Units | In Wc |
| Response Time | 250 ms |
| Storage Temp. Range | -40°F to +180°F |
| Thermal Error | -0.03% to +0.03% |
| Wetted Materials | Brass |
| Width, Diameter | 1 8/25" |
| Electrical Connections | Screw Terminals |
| Manufacturers Warranty Length | 1 yr. |
| Maximum Operating Temperature | 160°F |
| Maximum Pressure | 0.25 in. wc |
| Minimum Operating Temperature | 0°F |
| Minimum Pressure | 0 in. wc |
| Process Connection | 1/4" Male Hose Barb |
| Series | CXLdp Series |
| Standards | CE, ROHS |
| Storage Temperature Range | –40°F to 180°F |
| Weight | 2.5 oz. |
| Width / Diameter | 1.32" |
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 8.46 |
| Ship length (cm) | 4.8 |
| Ship width (cm) | 3.35 |
| Country of Origin | US |
