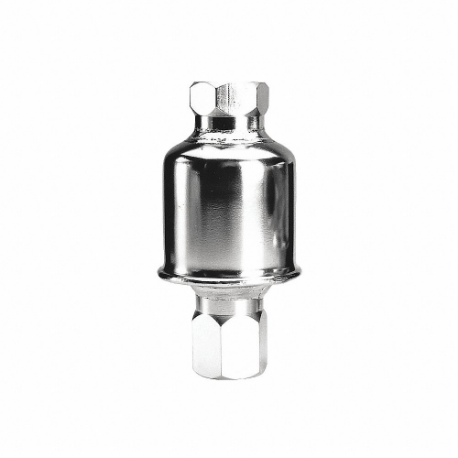

| Item | Air Vent |
| Height | 4.688" |
| Inlet Size | 3/4" |
| Max. Temp. | 450°F |
| Max. Working Pressure | 300 psi |
| Outlet Size | 3/4" |
| Width | 2 1/4" |
| Air Vent Material | Bronze |
| Allowable Pressure - Maximum | 300 psi |
| Allowable Temperature - Maximum | 450°F |
| Application | Heat Exchangers |
| Body Material | Stainless Steel |
| Condensate Capacity | 4500 lbs./hr. |
| Configuration | Straight-Thru |
| Distance Between Inlet And Outlet Port | 4 11/16" |
| Gasket Material | Copper |
| Includes Air Vent | Air Vent Included |
| Includes Strainer | Strainer Not Included |
| Inlet Port Connection Gender | Female |
| Inlet Port Connection Size | 3/4" |
| Inlet Port Connection Type | NPT |
| Operating Pressure - Maximum | 300 psi |
| Outlet Port Connection Gender | Female |
| Outlet Port Connection Size | 3/4" |
| Outlet Port Connection Type | NPT |
| Overall Depth | 4 11/16" |
| Overall Width | 2 1/4" |
| Port Connections | Inlet, Outlet |
| Self-draining | Self Draining |
| Steam Trap Type | Thermostatic |
| Ship weight (kg) | 0.41 |
| Ship height (cm) | 11.91 |
| Ship length (cm) | 11.91 |
| Ship width (cm) | 5.72 |
| Country of Origin | US |
| Product | Model | Price | |
|---|---|---|---|
 |
1AV-1/2"-1/8" | €400.54 | |
 |
1AV-3/4"-1/8" | €435.22 | |
|
1AV-1/2"-7/64" | €420.69 | |
|
1AV-3/4"-7/64" | €435.54 | |
 |
11AV-1/2"-1/8" | €734.98 | |
|
1AV-1/2"-#38 | €420.69 | |
|
1AV-3/4"-#38 | €435.54 |
