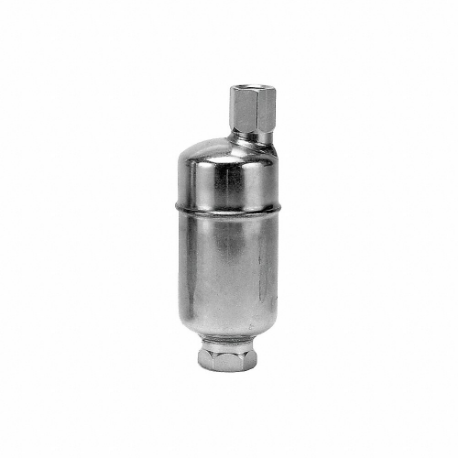

| Item | Air Vent |
| Height | 7 1/4" |
| Inlet Size | 1/2" |
| Max. Temp. | 500°F |
| Max. Working Pressure | 178 psi |
| Outlet Size | 1/2" |
| Width | 2 3/4" |
| Application | Steam Traps |
| Body Material | Stainless Steel |
| Cap Material | Stainless Steel |
| Condensate Capacity | 518 lbs./hr. |
| Distance Between Inlet And Outlet Port | 9/16" |
| Float Material | Stainless Steel |
| For Media | Steam |
| Inlet Connection Type | NPT |
| Inlet Gender | Female |
| Inlet Pipe Size | 1/2" |
| Inlet Port Location | Side |
| Installation Orientation | Vertical |
| Lever Assembly Material | Stainless Steel |
| Manufacturer Series | 11AV |
| Max. Operating Pressure | 178 psi |
| Max. Operating Temp. | 500°F |
| Number Of Inlet Ports | 1 |
| Number Of Outlet Ports | 1 |
| Overall Depth | 7 1/4" |
| Overall Length | 7 1/4" |
| Overall Width | 2 3/4" |
| Port Adjustability | Fixed |
| Port Types Included | Air Vent |
| Product Type | Air Vent |
| Release Method | Automatic |
| Relief Port Location | Top |
| Relief Port Size | 1/8" |
| Standards | CE LISTED, CRN, PED |
| Ship weight (kg) | 0.68 |
| Ship height (cm) | 18.42 |
| Ship length (cm) | 18.42 |
| Ship width (cm) | 6.99 |
| Country of Origin | US |
| Product | Model | Price | |
|---|---|---|---|
 |
1AV-1/2"-1/8" | €400.54 | |
 |
1AV-3/4"-1/8" | €435.22 | |
|
1AV-1/2"-7/64" | €420.69 | |
|
1AV-3/4"-7/64" | €435.54 | |
|
1AV-1/2"-#38 | €420.69 | |
|
1AV-3/4"-#38 | €435.54 | |
|
11AV-1/2"-#38 | €754.78 |
