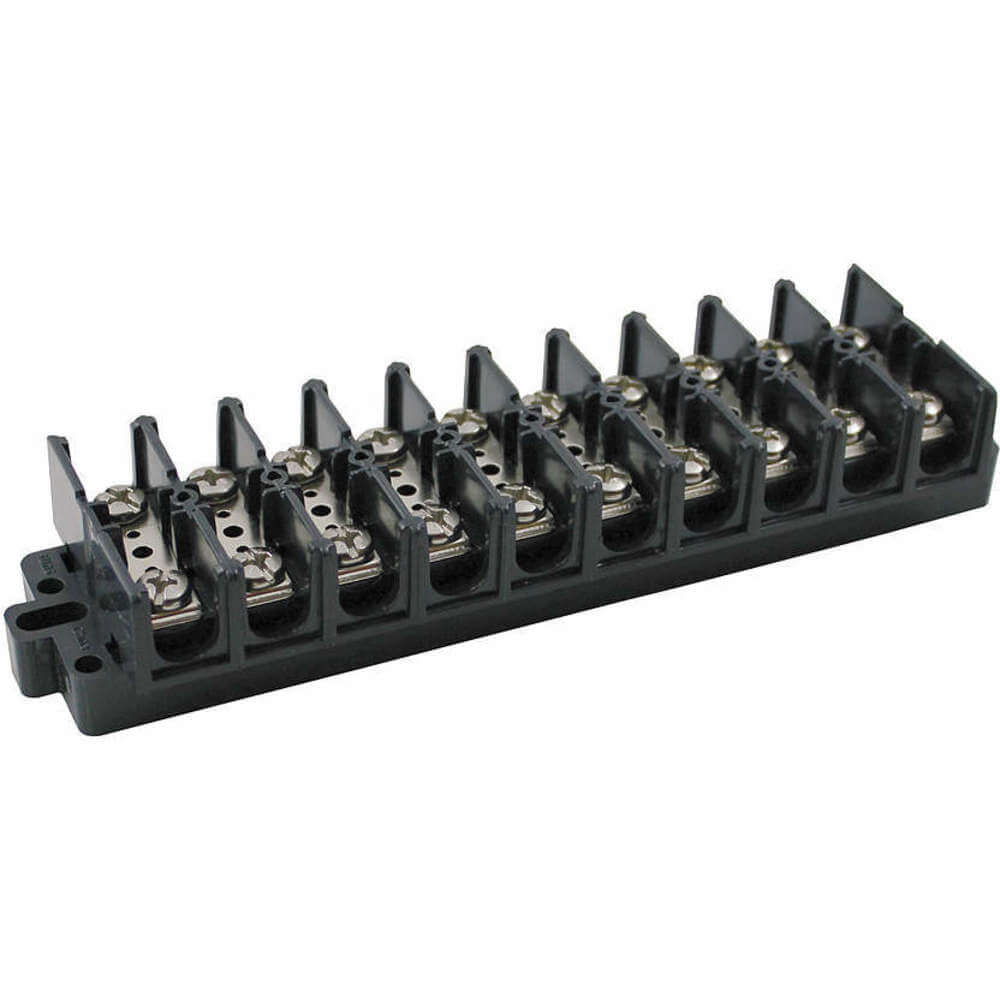

| Item | Terminal Strip |
| Amps | 60A |
| Center Spacing | 5/8" |
| Color | Black |
| Height | 1.22" |
| Length | 7 12/25" |
| Material | Thermal Plastic |
| Max. Wire Size | 6 AWG |
| Min. Wire Size | 22 AWG |
| Number Of Poles | 10 |
| Temp. Range | -40°F to +257°F |
| Temp. Rating | -40°F to 257°F |
| Voltage | 600V AC |
| Width | 2" |
| Compatible With Product Type | Power Distribution Blocks |
| Cover Included | No |
| Current | 60A |
| Flammability Rating | V-0 |
| For Maximum Wire Size | 6 AWG |
| For Minimum Wire Size | 22 AWG |
| Housing Color | Black |
| Housing Material | Thermal Plastic |
| Maximum Operating Temperature | 221°F |
| Maximum Voltage | 600V AC |
| Minimum Operating Temperature | -40°F |
| Mounting Style | Bolt Down |
| Number Of Rows | 2 |
| Overall Height | 1 1/4" |
| Overall Length | 7.5" |
| Overall Width | 2.02" |
| Rohs Compliant | Yes |
| Screw Type | Phil-Slot |
| Standards | CRUUS |
| Terminal Material | Copper |
| Termination Screw Finish | Nickel Plated |
| Termination Screw Material | Steel |
| Termination Screw Size | #10-32 |
| Termination Style | Screw |
| Torque | 20 lbs.-in. |
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 3.81 |
| HS code | 8536904000 |
| Country of Origin | CN |
| Product | Model | Amps | Block Material | Height | Length | Material | Max. Wire Size | Number Of Poles | Temp. Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
6YH63 | 30 | - | 0.83" | 2.13" | Thermal Plastic | 10 AWG | 2 | -40 Degrees to 266 Degrees F | €4.64 | |
 |
6YH64 | 30 | - | 0.83" | 3.25" | Thermal Plastic | 10 AWG | 4 | -40 Degrees to 266 Degrees F | €9.22 | |
 |
6YH65 | 30 | - | 0.83" | 4.37" | Thermal Plastic | 10 AWG | 6 | -40 Degrees to 266 Degrees F | €13.31 | |
 |
6YH66 | 30 | - | 0.83" | 5.5" | Thermal Plastic | 10 AWG | 8 | -40 Degrees to 266 Degrees F | €18.47 | |
 |
6YH68 | 30 | - | 0.83" | 7.75" | Thermal Plastic | 10 AWG | 12 | -40 Degrees to 266 Degrees F | €27.30 | |
 |
6YH91 | 60 | - | 1.22" | 5" | Thermal Plastic | 6 AWG | 6 | -40 Degrees to 266 Degrees F | €29.57 | |
 |
6YH93 | 60 | - | 1.22" | 8.75" | Thermal Plastic | 6 AWG | 12 | -40 Degrees to 266 Degrees F | €59.42 |
