Get it by Tuesday, Jun 17
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
Payment

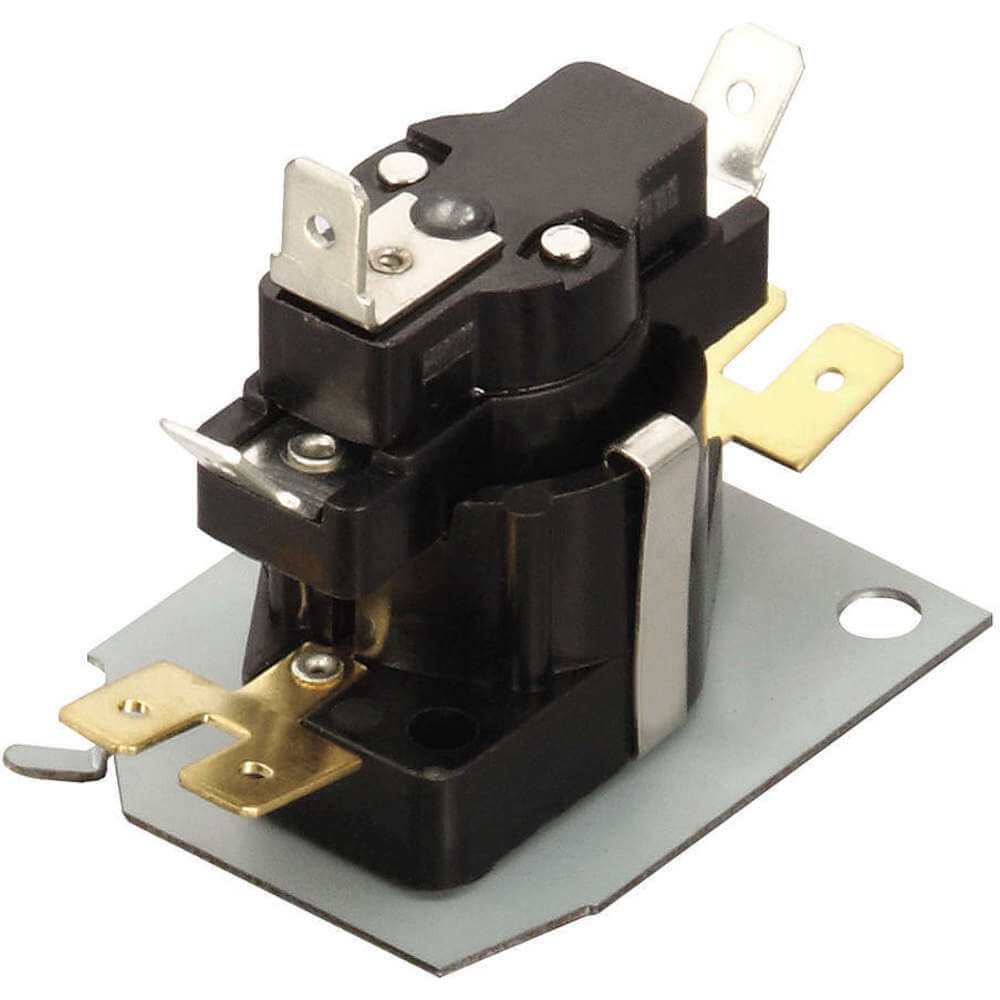

| Item | Electric Sequencer |
| Control Voltage | 24V |
| Depth | 1 1/2" |
| Full Load Amps @ 240vac | 7A |
| Height | 2 1/2" |
| Locked Rotor Amps @ 240v | 42A |
| Number Of Switches | 1 |
| Width | 1 3/4" |
| Application | HVAC Systems, Refrigeration Systems |
| Auxiliary Switch Off Maximum | 25 sec. |
| Auxiliary Switch Off Minimum | 1 sec. |
| Auxiliary Switch On Maximum | 115 sec. |
| Auxiliary Switch On Minimum | 65 sec. |
| Full Load Amps @ 120v Ac | 10A |
| Full Load Amps @ 240v Ac | 7A |
| Locked Rotor Amps @ 120v Ac | 72A |
| Locked Rotor Amps @ 240v Ac | 42A |
| Main Switch Off Maximum | 115 sec. |
| Main Switch Off Minimum | 65 sec. |
| Main Switch On Maximum | 25 sec. |
| Main Switch On Minimum | 1 sec |
| Number Of Timings | 1 |
| Operating Temperature - Maximum | 281°F |
| Operating Temperature - Minimum | -20°F |
| Overall Depth | 1 1/2" |
| Overall Length | 2 1/2" |
| Overall Width | 1 3/4" |
| Pilot Duty @ 120v Ac | 125 VA |
| Resistive Load Amps @ 120v Ac | 25A |
| Resistive Load Amps @ 240v Ac | 25A |
| Standards | CURUS RECOGNIZED |
| Voltage | 24V AC |
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 4.57 |
| Ship length (cm) | 8.38 |
| Ship width (cm) | 7.37 |
| HS code | 8536509065 |
| Country of Origin | CN |
