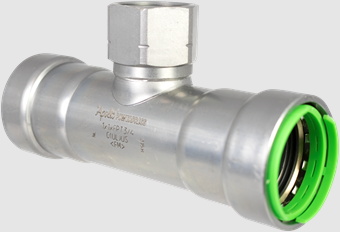

APOLLO VALVES PWR7480671 Tee Handle, Full Port, Size 2 x 2 x 1-1/4 Inch
Get it by Tuesday, Jun 17
€339.62 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Tee Handle |
| Bend Angle | 90° |
| Capped | Yes |
| Color | Gray |
| Connection Type | Press x FNPT x Press |
| Contour Code | DW |
| D1 | 2.37 |
| D2 | 1.66 |
| D3 | 2.37 |
| Dimensions | 4.11" x 7.56" x 2.91" |
| Finish | Zinc Nickel Plated |
| Flange Compression Class | 16 Bar |
| Grade | Grade ST 35 |
| High Tensile Strength | Yes |
| Length Of Connection 1 | 3.78" |
| Length Of Connection 2 | 2.66" |
| Length Of Connection 3 | 3.78" |
| Material | Steel |
| Max. Medium Temp. | 302°F |
| Max. Operating Pressure | 232 psi |
| Medium Temp. (continuous) | -40°F to +302°F |
| Min. Medium Temp. | -40°F |
| Model | T-Piece |
| Multi-part | No |
| Outer Pipe Dia. Connection 1 | 2.37" |
| Outer Pipe Dia. Connection 2 | 1.66" |
| Outer Pipe Dia. Connection 3 | 2.37" |
| Peak Medium Temp. | 320°F |
| Reducing | Yes |
| Seal Material | EPDM |
| Series | PowerPress Series |
| Shape | 90° T-Piece Reducer |
| Size | 2" x 2" x 1 1/4" |
| Slw2 | 1.969 |
| Surface Protection | Zinc Nickel Plated |
| System Specific | Yes |
| Wall Thickness, Connection 1 | 3.4 mm |
| Wall Thickness, Connection 3 | 3.4 mm |
| With Buffer Stud | Yes |
| With Connection Indicator | Yes |
| With De-aerator | No |
| With Drain Valve | No |
| With Sealing Rings/gaskets | No |
| With Thermal Insulation | No |
| Working Length Connection 1 | 1.69" |
| Working Length Connection 2 | 1.87" |
| Working Length Connection 3 | 1.69" |
| Z1 | 1.69 |
| Z2 | 1.87 |
| Z3 | 1.69 |
| Ship weight (kg) | 1.27 |
| Ship height (cm) | 7.39 |
| Ship length (cm) | 10.44 |
| Ship width (cm) | 19.2 |
| Country of Origin | NL |
| Model | Price | |
|---|---|---|
| PWR7480363 | €84.66 | |
| PWR7480374 | €76.18 | |
| PWR7480385 | €90.30 | |
| PWR7480396 | €153.65 | |
| PWR7480407 | €176.75 | |
| PWR7480418 | €291.35 | |
| PWR7480429 | €83.23 |
