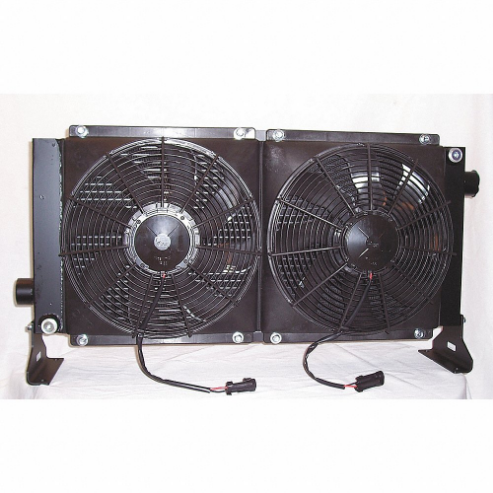

AKG D70-12 Oil Cooler 12 Vdc 8-80 Gpm 0.48 Hp
Get it by Tuesday, Jun 17
€4,406.40 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Forced Air Oil Cooler |
| Construction | Aluminum |
| Depth | 9 24/25" |
| Finish | Paint |
| Flow Ranges (gpm) | 8-80 GPM |
| Height | 20.29" |
| Hp Heat Removed | 70 hp |
| Max. Pressure | 377 psi |
| Motor Amps | 29A |
| Motor Hp | 0.48 hp |
| Nema/iec Frame | IP68 |
| Port Size | #20 |
| Port Type | SAE |
| Type | DC Motor |
| Voltage | 12V DC |
| Width | 36.22" |
| Bypass Valve Included | No |
| Compatible Hydraulic Fluids | Up to ISO 320 |
| Fan Blade Material | Plastic |
| Fan Guard Material | Plastic |
| Flow Range | 8-80 GPM |
| Full Load Amps | 29A |
| Hp | 0.48 hp |
| Includes | Foot Mounting Bracket |
| Inlet Port Thread Gender | Female |
| Inlet Port Thread Size | SAE #20 |
| Max. Flow | 80 GPM |
| Max. Oil Temp. | 250°F |
| Max. Operating Temp. | 250°F |
| Motor Enclosure Design | Totally Enclosed Nonventilated |
| Motor Frame Size | IP68 |
| Motor Type - Oil Coolers | DC |
| Mounting Bracket Material | STEEL |
| No. Of Fans | 2 |
| Oil Cooler Finish | Powder Coated |
| Oil Cooler Material | Aluminum |
| Outlet Port Thread Gender | Female |
| Outlet Port Thread Size | SAE #20 |
| Overall Depth | 9.96" |
| Overall Height | 20.29" |
| Overall Width | 36.22" |
| Shroud Material | Plastic |
| With Motor/without Motor | With Motor |
| Ship weight (kg) | 49.95 |
| Ship height (cm) | 51.54 |
| Ship length (cm) | 25.3 |
| Ship width (cm) | 92 |
| HS code | 8419505000 |
| Country of Origin | US |
| Product | Model | Depth | Finish | Height | Max. Pressure | Motor Hp | Nema/iec Frame | Port Size | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A10-1 | 14.5" | Black Painted | 15.91" | 377 PSI | 1/2 | 56C | SAE #16 | AC Motor | €1,697.92 | |
 |
A130-3 | 25.1" | Black Painted | 37.56" | 377 PSI | 5 | 184TC | 2" SAE 4 Bolt Flange | AC Motor | €7,975.17 | |
 |
A15-1 | 16" | Black Painted | 15.91" | 377 PSI | 1/2 | 56C | SAE #16 | AC Motor | €1,750.63 | |
 |
A20-1 | 15.5" | Black Painted | 19.6" | 377 PSI | 1/2 | 56C | SAE #20 | AC Motor | €1,743.66 | |
|
A215-3 | 30.8" | Black Painted | 46.96" | 250 psi | 10 | 215TC | 3" SAE 4 Bolt Flange | AC Motor | €11,371.17 | |
 |
A30-1 | 16.75" | Black Painted | 24.03" | 377 PSI | 1 | 56C | SAE #20 | AC Motor | €2,460.37 | |
|
A40-1 | 18" | Black Painted | 24.03" | 377 PSI | 1 | 56C | SAE #20 | AC Motor | €3,003.96 |
