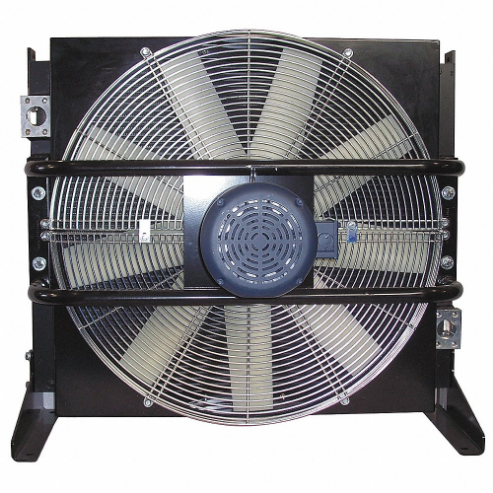

AKG A130-3 Oil Cooler Ac 20-200 Gpm 230/460 V 5 Hp
Get it by Tuesday, Jun 17
€7,975.17 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Forced Air Oil Cooler |
| Construction | Aluminum |
| Depth | 25.1" |
| Finish | Paint |
| Flow Ranges (gpm) | 20-200 GPM |
| Height | 37 14/25" |
| Hp Heat Removed | 130 hp |
| Includes | Mounting Feet |
| Max. Pressure | 377 psi |
| Motor Amps | 13.2/6.6A |
| Motor Hp | 5 hp |
| Nema/iec Frame | 184TC |
| Number Of Phases | 3 |
| Overall Depth | 25.1" |
| Overall Width | 40.94" |
| Port Size | 2" |
| Port Type | SAE |
| Type | AC Motor |
| Voltage | 230/460V |
| Width | 40.94" |
| Bypass Valve Included | No |
| Compatible Hydraulic Fluids | Up to ISO 320 |
| Fan Blade Material | PPG |
| Fan Guard Material | Steel |
| Flow Range | 20-200 GPM |
| Full Load Amps | 13.2/6.6A |
| Hp | 5 hp |
| Includes Mounting Bracket | Yes |
| Includes Mounting Hardware | Yes |
| Inlet Port Thread Gender | Female |
| Inlet Port Thread Size | 2" SAE 4 Bolt Flange |
| Max. Flow | 200 GPM |
| Max. Oil Temp. | 250°F |
| Max. Operating Temp. | 250°F |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Size | 184TC |
| Motor Type - Oil Coolers | AC |
| Mounting Bracket Material | Steel |
| No. Of Fans | 1 |
| Oil Cooler Finish | Powder Coated |
| Oil Cooler Material | Aluminum |
| Outlet Port Thread Gender | Female |
| Outlet Port Thread Size | 2" SAE 4 Bolt Flange |
| Overall Height | 37.56" |
| Shroud Material | Steel |
| With Motor/without Motor | With Motor |
| Ship weight (kg) | 186.3 |
| Ship height (cm) | 95.4 |
| Ship length (cm) | 63.75 |
| Ship width (cm) | 103.99 |
| HS code | 8419505000 |
| Country of Origin | US |
| Product | Model | Depth | Finish | Height | Max. Pressure | Motor Hp | Nema/iec Frame | Port Size | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A10-1 | 14.5" | Black Painted | 15.91" | 377 PSI | 1/2 | 56C | SAE #16 | AC Motor | €1,697.92 | |
 |
A15-1 | 16" | Black Painted | 15.91" | 377 PSI | 1/2 | 56C | SAE #16 | AC Motor | €1,750.63 | |
 |
A20-1 | 15.5" | Black Painted | 19.6" | 377 PSI | 1/2 | 56C | SAE #20 | AC Motor | €1,743.66 | |
|
A215-3 | 30.8" | Black Painted | 46.96" | 250 psi | 10 | 215TC | 3" SAE 4 Bolt Flange | AC Motor | €11,371.17 | |
 |
A30-1 | 16.75" | Black Painted | 24.03" | 377 PSI | 1 | 56C | SAE #20 | AC Motor | €2,460.37 | |
|
A40-1 | 18" | Black Painted | 24.03" | 377 PSI | 1 | 56C | SAE #20 | AC Motor | €3,003.96 | |
|
A55-3 | 19.5" | Black Painted | 25.89" | 377 PSI | 2 | 56C | SAE #20 | AC Motor | €3,417.54 |
