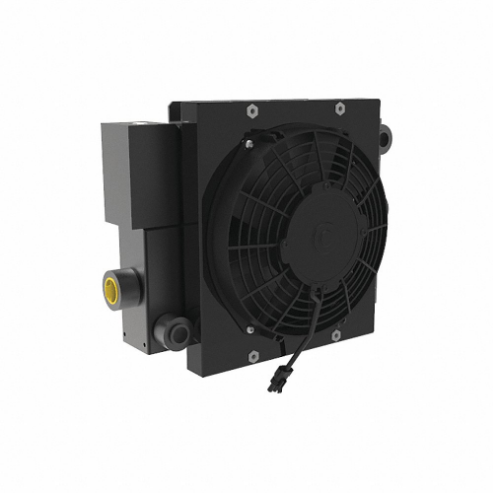

AKG D10-12-BP25 Forced Air Oil Cooler, DC, 10 hp Heat Removed, 30 GPM Max. Flow, 377 PSI Max. Pressure
Get it by Tuesday, Jun 17
€1,472.40 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Forced Air Oil Cooler |
| Bypass Pressure | 25 psi |
| Bypass Valve Included | Yes |
| Compatible Hydraulic Fluids | Up To ISO 320 |
| Construction | Aluminum |
| Fan Blade Material | Plastic |
| Fan Guard Material | Plastic |
| Finish | Powder Coat |
| Flow Range | 2-30 GPM |
| Hp Heat Removed | 10 hp |
| Includes | Bypass Valve |
| Inlet Port Thread Gender | Female |
| Inlet Port Thread Size | #12 |
| Inlet Port Thread Type | SAE |
| Material | Aluminum |
| Max. Flow | 30 GPM |
| Max. Oil Temp. | 250°F |
| Max. Operating Temp. | 250°F |
| Max. Pressure | 377 psi |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Size | IP68 |
| Motor Hp | 2/25 hp |
| Motor Type | DC |
| Number Of Fans | 1 |
| Outlet Connection Gender | Female |
| Outlet Port Thread Size | #12 |
| Overall Depth | 6.02" |
| Overall Height | 11.46" |
| Overall Width | 13.78" |
| Shroud Material | Plastic |
| Voltage | 12V DC |
| With Motor/without Motor | With Motor |
| Bypass Valve Included | Yes |
| Full Load Amps | 5A |
| Hp | 0.08 hp |
| Motor Type - Oil Coolers | DC |
| No. Of Fans | 1 |
| Oil Cooler Finish | Powder Coated |
| Oil Cooler Material | Aluminum |
| Outlet Port Thread Gender | Female |
| Ship weight (kg) | 9.23 |
| Ship height (cm) | 29.11 |
| Ship length (cm) | 15.29 |
| Ship width (cm) | 35 |
| Country of Origin | US |
| Product | Model | Depth | Finish | Height | Max. Pressure | Motor Hp | Nema/iec Frame | Port Size | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A10-1 | 14.5" | Black Painted | 15.91" | 377 PSI | 1/2 | 56C | SAE #16 | AC Motor | €1,697.92 | |
 |
A130-3 | 25.1" | Black Painted | 37.56" | 377 PSI | 5 | 184TC | 2" SAE 4 Bolt Flange | AC Motor | €7,975.17 | |
 |
A15-1 | 16" | Black Painted | 15.91" | 377 PSI | 1/2 | 56C | SAE #16 | AC Motor | €1,750.63 | |
 |
A20-1 | 15.5" | Black Painted | 19.6" | 377 PSI | 1/2 | 56C | SAE #20 | AC Motor | €1,743.66 | |
|
A215-3 | 30.8" | Black Painted | 46.96" | 250 psi | 10 | 215TC | 3" SAE 4 Bolt Flange | AC Motor | €11,371.17 | |
 |
A30-1 | 16.75" | Black Painted | 24.03" | 377 PSI | 1 | 56C | SAE #20 | AC Motor | €2,460.37 | |
|
A40-1 | 18" | Black Painted | 24.03" | 377 PSI | 1 | 56C | SAE #20 | AC Motor | €3,003.96 |
