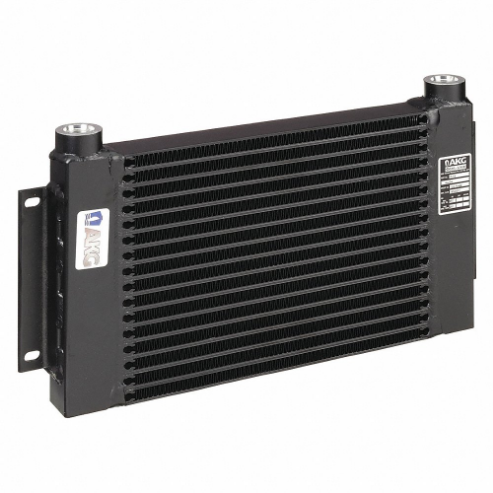

| Item | Hydraulic Oil Cooler |
| Air Flow | 1000 FPM |
| Flow Ranges (gpm) | 2-30 GPM |
| Hp Heat Removed | 14 hp |
| Includes | Universal Mounting Bracket |
| Material | Aluminum |
| Max. Pressure | 250 psi |
| Max. Temp. | 250°F |
| Overall Depth | 1.77" |
| Overall Height | 10.98" |
| Overall Width | 17.91" |
| Port Size | #12 |
| Port Type | SAE |
| Type | Mobile |
| Bypass Valve Included | No |
| Flow Range | 2-30 GPM |
| For Fluid Viscosity | Up to ISO VG 320 |
| Inlet Port Thread Gender | Female |
| Inlet Port Thread Size | SAE #12 |
| Max. Flow Rate | 30 GPM |
| Max. Operating Temp. | 250°F |
| Min. Flow Rate | 2 GPM |
| Oil Cooler Material | Aluminum |
| Outlet Port Thread Gender | Female |
| Outlet Port Thread Size | SAE #12 |
| Ship weight (kg) | 5.92 |
| Ship height (cm) | 27.89 |
| Ship length (cm) | 4.5 |
| Ship width (cm) | 45.49 |
| HS code | 8419501000 |
| Country of Origin | US |
| Product | Model | Overall Depth | Overall Height | Overall Width | Port Size | Price | |
|---|---|---|---|---|---|---|---|
 |
C-12 | 2.56" | 11.73" | 13.98" | SAE #12 | €743.40 | |
 |
C-120 | 2.56" | 39.49" | 31.5" | SAE #24 | €2,185.06 | |
 |
C-18 | 2.56" | 13.58" | 15.94" | SAE #12 | €829.80 | |
 |
C-20 | 1.77" | 15.31" | 17.91" | SAE #12 | €939.60 | |
 |
C-32 | 2.56" | 18.43" | 19.88" | SAE #20 | €1,220.40 | |
 |
C-48 | 2.56" | 22.13" | 23.62" | SAE #20 | €1,515.60 | |
 |
C-66 | 2.56" | 25.83" | 27.56" | SAE #20 | €1,935.00 |
