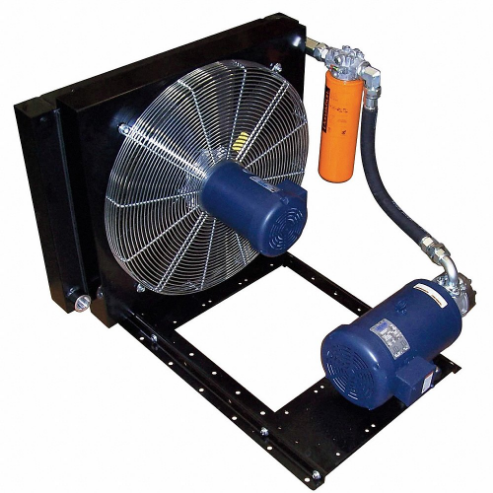

AKG AP70-8051 Oil Cooler Ac Motor 59.9hp Heat Removed
Get it by Tuesday, Jun 17
€7,682.85 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Forced Air Oil Cooler |
| Decibels | 92 dB |
| Displacement | 4.88 cu. in. |
| Fan Motor Hp | 2 hp |
| Filter Type | Spin On |
| Finish | Black |
| Heat Exchanger Material | Aluminum |
| Hp Heat Removed | 59.9 hp |
| Inlet Port Size | 2" |
| Microns | 9 µm |
| Motor Amps | 6.2/3.1/19.6/9.8A |
| Motor Housing Material | Steel |
| Overall Depth | 38" |
| Overall Height | 31 2/5" |
| Overall Width | 38 1/5" |
| Pump Motor Hp | 7.5 hp |
| Pump Rpm | 1750 RPM |
| Type | AC Motor With Pump |
| Voltage | 230/460V |
| Ship weight (kg) | 179.17 |
| Ship height (cm) | 79.76 |
| Ship length (cm) | 96.52 |
| Ship width (cm) | 97.03 |
| HS code | 8419505000 |
| Country of Origin | US |
| Product | Model | Depth | Finish | Height | Max. Pressure | Motor Hp | Nema/iec Frame | Port Size | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A10-1 | 14.5" | Black Painted | 15.91" | 377 PSI | 1/2 | 56C | SAE #16 | AC Motor | €1,697.92 | |
 |
A130-3 | 25.1" | Black Painted | 37.56" | 377 PSI | 5 | 184TC | 2" SAE 4 Bolt Flange | AC Motor | €7,975.17 | |
 |
A15-1 | 16" | Black Painted | 15.91" | 377 PSI | 1/2 | 56C | SAE #16 | AC Motor | €1,750.63 | |
 |
A20-1 | 15.5" | Black Painted | 19.6" | 377 PSI | 1/2 | 56C | SAE #20 | AC Motor | €1,743.66 | |
|
A215-3 | 30.8" | Black Painted | 46.96" | 250 psi | 10 | 215TC | 3" SAE 4 Bolt Flange | AC Motor | €11,371.17 | |
 |
A30-1 | 16.75" | Black Painted | 24.03" | 377 PSI | 1 | 56C | SAE #20 | AC Motor | €2,460.37 | |
|
A40-1 | 18" | Black Painted | 24.03" | 377 PSI | 1 | 56C | SAE #20 | AC Motor | €3,003.96 |
