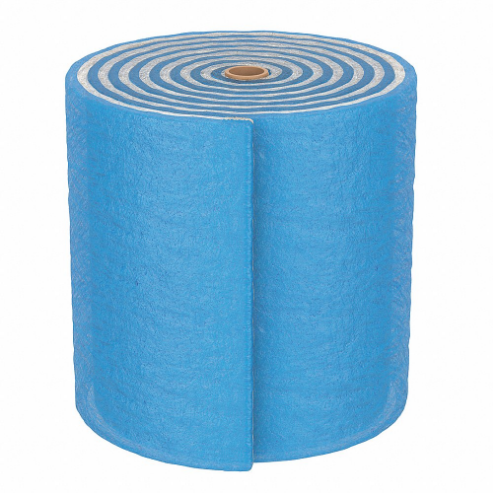

AIR HANDLER 6C525 Paint Collector Filter Roll 2-1/2 Inch D
Get it by Tuesday, Jun 17
€658.61 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Paint Collector Filter Roll |
| Media | Standard Capacity Fiberglass |
| Media Type | Standard Capacity Fiberglass |
| Nominal Depth | 2 1/2" |
| Nominal Length | 260 ft. |
| Nominal Width | 30" |
| Actual Filter Size | 30" x 260 ft. x 2 3/4" |
| Actual Height | 30" |
| Actual Thickness | 2 3/4" |
| Actual Width | 260 ft. |
| Common Applications | Paint Collection |
| Filter Efficiency - Air Filters | 45% |
| Filters Out | Carpet Fibers, Cockroach Debris, Dust Mites, Pollen, Sanding Dust, Spray Paint Dust, Textile Fibers |
| Initial Resistance @ 300 Fpm | 0.14 in. wc |
| Initial Resistance @ 500 Fpm | 0.28 in. wc |
| Max. Temp. | 180⁰F |
| Max. Velocity | 625 FPM |
| Media Color | Blue |
| Media Material | Fiberglass |
| Nominal Filter Size | 30" x 260 ft. x 3" |
| Nominal Height | 30" |
| Nominal Thickness | 3" |
| Performance Rating | MERV 1 |
| Recommended Final Resistance | 0.5 in. wc |
| Removes Particles Down To | Greater than 10 µm |
| Standards | EPA, NFPA #33, OSHA #1910.107 |
| Style - Air Filters | Roll |
| Surface Tackifier | No |
| Ship weight (kg) | 12.17 |
| Ship height (cm) | 80.26 |
| Ship length (cm) | 41.66 |
| Ship width (cm) | 41.15 |
| HS code | 8421398090 |
| Country of Origin | US |
| Model | Media | Nominal Depth | Nominal Width | Price | |
|---|---|---|---|---|---|
| 2EKK3 | Synthetic ECXL Polyester | 1" | 20.5" | €189.07 | |
| 2EKK4 | Synthetic ECXL Polyester | 1" | 25.5" | €252.62 | |
| 2EKK5 | Synthetic ECXL Polyester | 1" | 30" | €289.23 | |
| 2EKK6 | Synthetic ECXL Polyester | 1" | 36" | €339.01 | |
| 2EKK7 | Synthetic Polyester | 1" | 41" | €270.25 | |
| 2EKK8 | Synthetic ECXL Polyester | 1" | 48" | €461.07 | |
| 2EKK9 | Synthetic Polyester | 1" | 60" | €373.99 | RFQ
|
