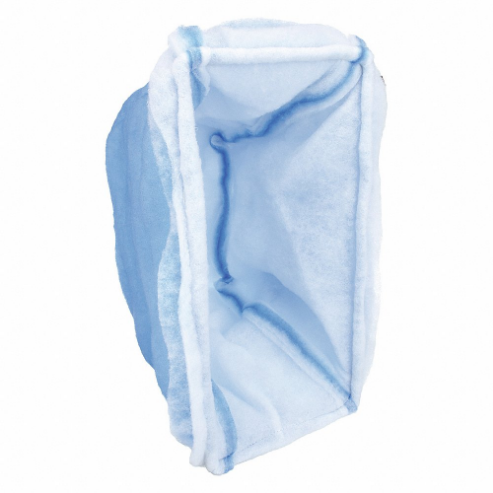

AIR HANDLER 6B782 Cube Filter 3-ply Polyester 12 x 24 x 10 Inch
Get it by Monday, Jun 16
€57.39 /unit
This product can only be shipped in multiples of 6Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Three Ply Polyester Cube Filter |
| Air Flow Rate | 500 FPM |
| Final Resistance | 1 in. wc |
| Initial Resistance | 0.22 in. wc |
| Max. Temp. | 150°F |
| Nominal Depth | 10" |
| Nominal Height | 12" |
| Nominal Width | 24" |
| Number Of Pockets | 0 |
| Actual Depth | 10" |
| Actual Filter Size | 11 1/4" x 23 1/4" x 10" |
| Actual Height | 11 1/4" |
| Actual Width | 23 1/4" |
| Air Flow @ 300 Fpm | 600 CFM |
| Air Flow @ 500 Fpm | 1000 CFM |
| Filter Efficiency - Air Filters | 35% |
| Filters Out | Cat & Dog Dander, Cement Dust, Dust Mites, Dusting Aids, Fabric Protector, Hair Spray, MERV 5-8 Mold, Pudding Mix, Spores |
| Frame Or Header Material | Galvanized Steel |
| Initial Resistance @ 300 Fpm | 0.20 in. wc |
| Initial Resistance @ 500 Fpm | 0.33 in. wc |
| Max. Velocity | 500 FPM |
| Media Area | 1.7 sq. ft. |
| Media Color | Blue, White |
| Media Material | Synthetic |
| Nominal Filter Size | 12" x 24" x 10" |
| Number Of Ply | 3 |
| Performance Rating | MERV 8 |
| Recommended Final Resistance | 1 in. wc |
| Removes Particles Down To | 3 µm to 10 µm |
| Standards | UL CLASS 900 |
| Style - Air Filters | Bag |
| Surface Tackifier | Yes |
| Ship weight (kg) | 0.77 |
| Ship height (cm) | 60.96 |
| Ship length (cm) | 67.06 |
| Ship width (cm) | 43.18 |
| HS code | 8421398090 |
| Country of Origin | US |
