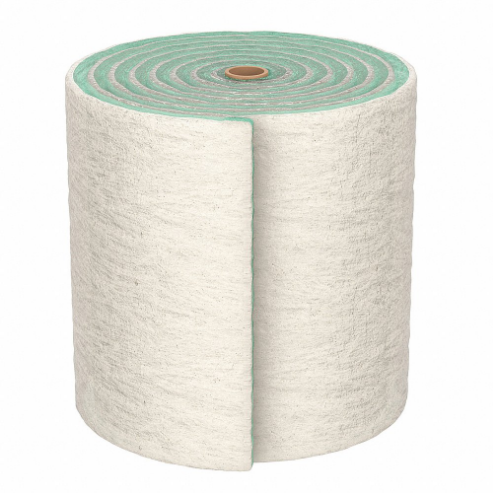

AIR HANDLER 6B682 Filter Media Roll 65 Feet L x 67-7/8w x 1in. T
Due to weight and dimension restrictions, please request a shipping quote
€581.65 /unit
Request a Quote
Payment
Due to weight and dimension restrictions, please request a shipping quote
Payment
| Item | Filter Media Roll |
| Color | Varies |
| Core Type | C |
| Final Resistance | 0.5 in. wc |
| Initial Resistance | 0.14 in. wc |
| Length | 65 ft. |
| Material | Polyester |
| Merv | 6 |
| Thickness | 1" |
| Width | 67 7/8" |
| Actual Filter Size | 67 7/8" x 65 ft. x 3/4" |
| Actual Height | 67 7/8" |
| Actual Thickness | 3/4" |
| Actual Width | 65 ft. |
| Common Applications | Auto-Roll Systems |
| Filter Efficiency - Air Filters | 60% |
| Filters Out | Cat & Dog Dander, Cement Dust, Dust Mites, Dusting Aids, Fabric Protector, Hair Spray, Mold, Pudding Mix, Spores |
| For Use With (systems) | Type C |
| Initial Resistance @ 300 Fpm | 0.19 in. wc |
| Initial Resistance @ 500 Fpm | 0.32 in. wc |
| Max. Temp. | 180⁰F |
| Max. Velocity | 625 FPM |
| Media Color | Green |
| Media Material | Polyester |
| Nominal Filter Size | 68" x 65 ft. x 1" |
| Nominal Height | 68" |
| Nominal Thickness | 1" |
| Nominal Width | 65 ft. |
| Performance Rating | MERV 6 |
| Recommended Final Resistance | 0.5 in. wc |
| Removes Particles Down To | 3 µm to 10 µm |
| Standards | UL 900 |
| Style - Air Filters | Roll |
| Surface Tackifier | No |
| Ship weight (kg) | 11.23 |
| Ship height (cm) | 176.53 |
| Ship length (cm) | 31.24 |
| Ship width (cm) | 31.24 |
| HS code | 8421398090 |
| Country of Origin | US |
| Product | Model | Final Resistance | Initial Resistance | Length | Material | Merv | Thickness | Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
2GFU3 | - | - | 180ft. | Polyester | - | 1/4" | 8" | €108.98 | |
|
2GGA4 | - | - | 135ft. | Polyester | 7 | 1/2" | 8" | €89.04 | |
|
2GGA8 | - | - | 135ft. | Polyester | 7 | 1/2" | 10" | €100.90 | |
 |
2GGC3 | - | - | 135ft. | Polyester | 7 | 1/2" | 12" | €118.44 | |
 |
2GGC7 | - | - | 135ft. | Polyester | 7 | 1/2" | 40" | €243.64 | |
|
2GGD2 | - | - | 135ft. | Polyester | 7 | 1/2" | 50" | €332.29 | |
|
2GGD6 | - | - | 135ft. | Polyester | 7 | 1/2" | 60" | €368.90 | RFQ
|
