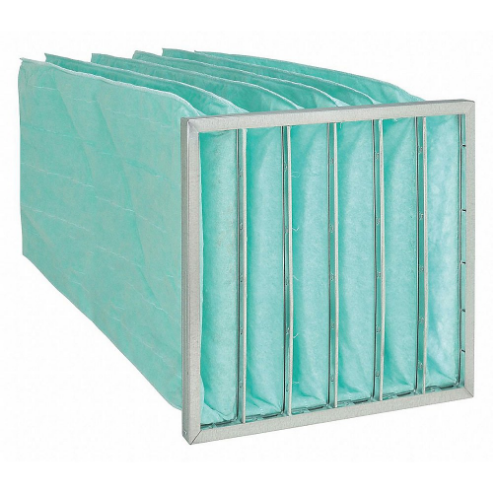

AIR HANDLER 5M417 Pocket Air Filter Synthetic 24 x 24 x 30 Inch
Get it by Monday, Jun 16
€76.14 /unit
This product can only be shipped in multiples of 4Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Pocket Air Filter |
| Air Flow Rate | 500 FPM |
| Capacity Cfm | 2000 CFM |
| Filter Efficiency | 65% |
| Final Resistance | 1 in. wc |
| Frame Finish | Galvanized |
| Frame Material | Steel |
| Frame Size | 0.812" |
| Initial Resistance | 0.35 in. wc |
| Material | Synthetic |
| Material Thickness | 24 ga. |
| Max. Temp. | 190°F |
| Media Area | 60 sq. ft. |
| Media Color | Orange |
| Nominal Depth | 30" |
| Nominal Height | 24" |
| Nominal Width | 24" |
| Number Of Pockets | 6 |
| Actual Depth | 30" |
| Actual Filter Size | 23 3/8" x 23 3/8" x 30" |
| Actual Height | 23 3/8" |
| Actual Width | 23 3/8" |
| Air Filter Header Type | Single Header |
| Air Flow @ 300 Fpm | 1200 CFM |
| Air Flow @ 500 Fpm | 2000 CFM |
| Filter Efficiency - Air Filters | 60% to 65% |
| Filters Out | Auto Emission Particulates, Coal Dust, Humidifier Dust, Lead Dust, MERV 9-12 Legionella, Milled Flour, Nebulizer Droplets |
| Frame Or Header Material | Galvanized Steel |
| Gasket Location | None |
| Gasket Material | None |
| Initial Resistance @ 300 Fpm | 0.21 in. wc |
| Initial Resistance @ 500 Fpm | 0.35 in. wc |
| Max. Velocity | 500 FPM |
| Media Material | Synthetic |
| Nominal Filter Size | 24" x 24" x 30" |
| Performance Rating | MERV 11 |
| Recommended Final Resistance | 1 in. wc |
| Removes Particles Down To | 1 µm to 3 µm |
| Standards | UL 900 |
| Style - Air Filters | Bag |
| Ship weight (kg) | 1.49 |
| Ship height (cm) | 60.96 |
| Ship length (cm) | 62.74 |
| Ship width (cm) | 26.42 |
| HS code | 8421398090 |
| Country of Origin | US |
| Product | Model | Capacity Cfm | Initial Resistance | Material | Max. Temp. | Media Area | Nominal Depth | Nominal Filter Size | Number Of Pockets | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2DVU2 | 2000 | 0.25"WC | Fiberglass | 150 Degrees F | 105 sq. ft. | 29" | 24x24x29 | 10 | €111.39 | |
 |
2DVU4 | 2000 | 0.24"WC | Fiberglass | 150 Degrees F | 82 sq. ft. | 36" | 24x24x36 | 6 | €119.35 | |
 |
5E854 | 2000 | 0.45"WC | Fiberglass | 190 Degrees F | 68 sq. ft. | 29" | 24x24x29 | 6 | €86.28 | |
|
5E855 | 1250 | 0.55"WC | Fiberglass | 190 Degrees F | 41 sq. ft. | 18" | 24x24x18 | 6 | €69.46 | |
 |
5M416 | 2000 | 0.40"WC | Synthetic | 190 Degrees F | 44 sq. ft. | 22" | 24x24x22 | 6 | €64.28 | |
|
5M418 | 2000 | 0.35"WC | Synthetic | 190 Degrees F | 72 sq. ft. | 36" | 24x24x36 | 6 | €81.04 | |
|
5M436 | 2000 | 0.35"WC | Synthetic | 190 Degrees F | 58 sq. ft. | 22" | 24x24x22 | 8 | €81.60 |
