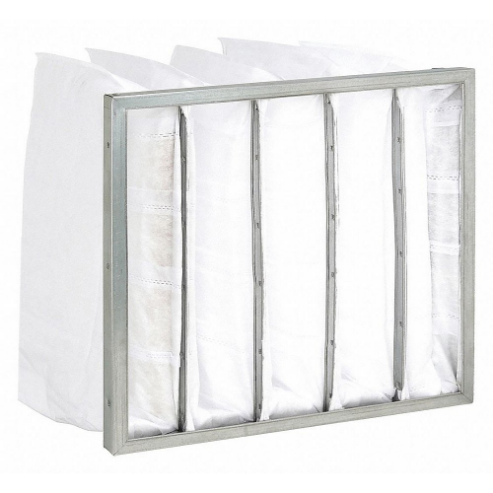

AIR HANDLER 5E862 Pocket Air Filter Fiberglass 20 x 24 x 14 Inch
Get it by Monday, Jun 16
€80.15 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Pocket Air Filter |
| Air Flow Rate | 500 FPM |
| Capacity Cfm | 1650 CFM |
| Filter Efficiency | 45% |
| Final Resistance | 1 in. wc |
| Frame Finish | Galvanized |
| Frame Material | Steel |
| Frame Size | 0.812" |
| Initial Resistance | 0.4 in. wc |
| Material | Fiberglass |
| Material Thickness | 24 ga. |
| Max. Temp. | 190°F |
| Media Area | 28 sq. ft. |
| Media Color | Tan |
| Nominal Depth | 14" |
| Nominal Height | 20" |
| Nominal Width | 24" |
| Number Of Pockets | 5 |
| Actual Depth | 15" |
| Actual Filter Size | 23 3/8" x 11 3/8" x 15 |
| Actual Height | 24 3/8" |
| Actual Width | 19 3/8" |
| Air Filter Header Type | Single Header |
| Air Flow @ 300 Fpm | 1042 CFM |
| Air Flow @ 500 Fpm | 1736 CFM |
| Filter Efficiency - Air Filters | 45% to 55% |
| Filters Out | Cat & Dog Dander, Cement Dust, Dust Mites, Dusting Aids, Fabric Protector, Hair Spray, MERV 5-8 Mold, Pudding Mix, Spores |
| Frame Or Header Material | Galvanized Steel |
| Gasket Location | None |
| Gasket Material | None |
| Initial Resistance @ 300 Fpm | 0.30 in. wc |
| Initial Resistance @ 500 Fpm | 0.50 in. wc |
| Max. Velocity | 500 FPM |
| Media Material | Fiberglass |
| Nominal Filter Size | 25" x 20" x 15" |
| Performance Rating | MERV 8 |
| Recommended Final Resistance | 1 in. wc |
| Removes Particles Down To | 3 µm to 10 µm |
| Standards | UL 900 |
| Style - Air Filters | Bag |
| Ship weight (kg) | 1.26 |
| Ship height (cm) | 61.47 |
| Ship length (cm) | 50.29 |
| Ship width (cm) | 25.65 |
| HS code | 8421398090 |
| Country of Origin | US |
| Product | Model | Capacity Cfm | Initial Resistance | Material | Max. Temp. | Media Area | Media Color | Nominal Depth | Nominal Filter Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2GHL5 | 1200 | - | Fiberglass | 150 Degrees F | - | Orange | 22" | 20x24x22 | €67.73 | |
 |
5E861 | 1325 | 0.35"WC | Fiberglass | 190 Degrees F | 37 sq. ft. | Tan | 21" | 20x20x21 | €49.55 | |
|
5E863 | 1325 | 0.40"WC | Fiberglass | 190 Degrees F | 24 sq. ft. | Tan | 14" | 20x20x14 | €44.27 | |
 |
5E864 | 2000 | 0.40"WC | Fiberglass | 190 Degrees F | 24 sq. ft. | Tan | 10" | 24x24x10 | €57.22 | |
 |
5E865 | 1000 | 0.40"WC | Fiberglass | 190 Degrees F | 12 sq. ft. | Tan | 10" | 24x12x10 | €39.12 | |
 |
5M410 | 2000 | 0.60"WC | Synthetic | 190 Degrees F | 24 sq. ft. | White | 12" | 24x24x12 | €35.37 | |
|
5W448 | 2000 | 0.20"WC | Fiberglass | 190 Degrees F | 48 sq. ft. | Yellow/Tan | 21" | - | €57.02 |
