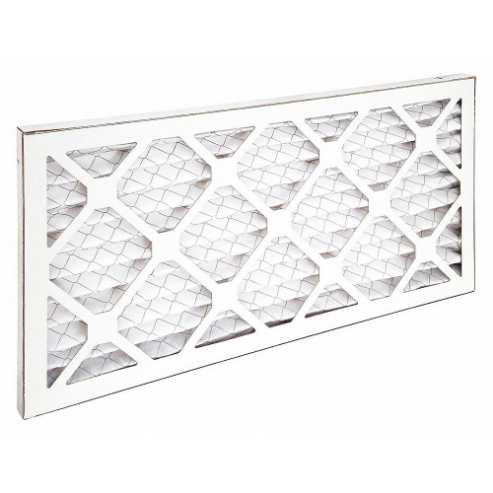

| Item | High Capacity Pleated Filter |
| Actual Depth | 3/4" |
| Actual Height | 9 1/2" |
| Actual Width | 19 1/2" |
| Final Recommended Resistance | 1 in. wc |
| Frame | Yes |
| Frame Material | Chipboard |
| Frame Type | Moisture Resistant Die Cut Chipboard |
| High Initial Resistance | 0.23 in. wc |
| High Velocity | 500 FPM |
| Material Properties | Moisture Resistant Die Cut |
| Max. Temp. | 180°F |
| Max. Velocity | 500 FPM |
| Media Area | 3 sq. ft. |
| Nominal Depth | 1" |
| Nominal Filter Size | 10" x 20" x 1" |
| Nominal Height | 10" |
| Nominal Pleat | 40% |
| Nominal Width | 20" |
| Pleats Per Linear Feet | 13 |
| Actual Filter Size | 9 1/2" x 19 1/2" x 3/4" |
| Air Filter Capacity | High Capacity |
| Air Flow @ 300 Fpm | 417 CFM |
| Air Flow @ 500 Fpm | 694 CFM |
| Common Applications | General Use |
| Filter Efficiency - Air Filters | 55% |
| Filter Frame Color | White |
| Filters Out | Auto Emission Particulates, Coal Dust, Humidifier Dust, Lead Dust, MERV 9-12 Legionella, Milled Flour, Nebulizer Droplets |
| Frame Or Header Material | Beverage Board |
| Gasket Location | None |
| Gasket Material | None |
| Initial Resistance @ 300 Fpm | 0.20 in. wc |
| Initial Resistance @ 500 Fpm | 0.33 in. wc |
| Media Color | White |
| Media Material | Synthetic |
| Performance Rating (meets Or Exceeds) | MERV 10 |
| Pleats Per Linear Foot | 12 |
| Standards | UL 900 CLASSIFIED |
| Style - Air Filters | Panel |
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 51.82 |
| Ship length (cm) | 31.5 |
| Ship width (cm) | 29.46 |
| HS code | 8421398090 |
| Country of Origin | US |
| Product | Model | Actual Depth | Actual Height | Actual Width | High Initial Resistance | High Velocity | Item | Max. Velocity | Media Area | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
33E895 | 3/4" | 16.5" | 29.5" | 0.23"WC | 500 fpm | High Capacity Pleated Filter | 500 fpm | 11 sq. ft. | €23.38 | |
 |
3DVN4 | 1.75" | 11.375" | 19.375" | 0.24"WC | 500 fpm | High Capacity Diamond Pleated Filter | 500 fpm | 7.2 sq. ft. | €15.28 | |
 |
3GRT2 | 1.75" | 11.375" | 23.375" | 0.24"WC | 500 fpm | High Capacity Diamond Pleated Filter | 500 fpm | 8.6 sq. ft. | €22.41 | |
|
3GRT3 | 1.75" | 13.5" | 19.5" | 0.24"WC | 500 fpm | High Capacity Diamond Pleated Filter | 500 fpm | 8.7 sq. ft. | €16.12 | |
|
3GRT4 | 1.75" | 13.5" | 24.5" | 0.24"WC | 500 fpm | High Capacity Diamond Pleated Filter | 500 fpm | 11 sq. ft. | €20.45 | |
|
3GRT5 | 1.75" | 15.5" | 19.5" | 0.24"WC | 500 fpm | High Capacity Diamond Pleated Filter | 500 fpm | 9.8 sq. ft. | €17.85 | |
|
3GRT6 | 1.75" | 15.375" | 23.375" | 0.24"WC | 500 fpm | High Capacity Diamond Pleated Filter | 500 fpm | 12.1 sq. ft. | €18.61 |
