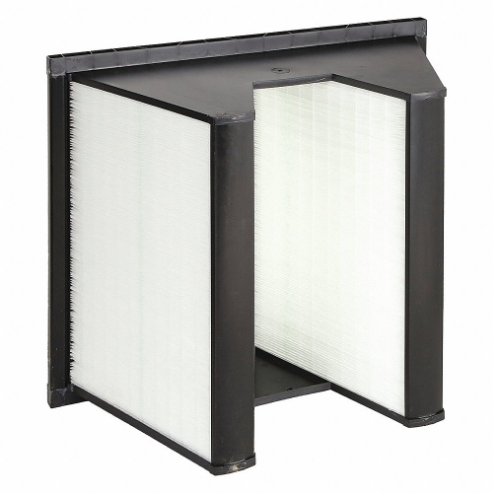

AIR HANDLER 4DKY6 V-bank Minipleat Filter 20x24x12 Merv 13
Get it by Tuesday, Jun 17
€250.16 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | V-Bank Air Filter |
| Air Flow Rate | 500 FPM |
| Filter Efficiency | 85% |
| Filter Pack Enclosure | Plastic Frame |
| Final Resistance | 1.5 in. wc |
| Initial Resistance | 0.30 in. wc, 0.45 in. wc, 0.61 in. wc |
| Max. Air Flow | 1920 CFM |
| Max. Temp. | 150°F |
| Media Area | 96 sq. ft. |
| Nominal Depth | 12" |
| Nominal Height | 20" |
| Nominal Width | 24" |
| Actual Depth | 11 1/2" |
| Actual Filter Size | 19 3/8" x 23 3/8" x 11 1/2" |
| Actual Height | 19 3/8" |
| Actual Width | 23 3/8" |
| Air Filter Header Type | Single Header |
| Air Flow @ 300 Fpm | 1000 CFM |
| Air Flow @ 500 Fpm | 1667 CFM |
| Air Flow @ 625 Fpm | 2083 CFM |
| Air Flow @ 750 Fpm | 2500 CFM |
| Filter Efficiency - Air Filters | 85% |
| Filters Out | Cooking Oil, Copier Toner, Droplet Nuclei (Sneeze), Insecticide Dust, MERV 13-16 All Bacteria, Most Face Power, Most Smoke, Most Tobacco Smoke, Paint Pigments |
| Frame Or Header Material | Plastic |
| Gasket Location | None |
| Gasket Material | None |
| Initial Resistance @ 500 Fpm | 0.39 in. wc |
| Media Color | White |
| Media Material | Fiberglass |
| Nominal Filter Size | 20" x 24" x 12" |
| Number Of Vs | 2 |
| Performance Rating | MERV 13 |
| Recommended Final Resistance | 1.5 in. wc |
| Removes Particles Down To | 0.3 µmto 1 µm |
| Standards | UL 900 |
| Style - Air Filters | Box |
| Ship weight (kg) | 4.63 |
| Ship height (cm) | 53.34 |
| Ship length (cm) | 63.5 |
| Ship width (cm) | 33.02 |
| HS code | 8421398090 |
| Country of Origin | US |
| Model | Air Flow | Filter Efficiency | Initial Resistance | Material | Max. Air Flow | Max. Temp. | Media Area | Merv | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 11Z791 | 500/625/750 fpm | 75% | 0.20/0.30/0.41" WC | 100% Synthetic Media | 1500 cfm | 150 Degrees F | 92 sq. ft. | 11 | €172.96 | |
| 11Z793 | 500/625/750 fpm | 75% | 0.20/0.30/0.41" WC | 100% Synthetic Media | 2190 cfm | 150 Degrees F | 135 sq. ft. | 11 | €223.81 | |
| 11Z794 | 500/625/750 fpm | 75% | 0.20/0.30/0.41" WC | 100% Synthetic Media | 2872 cfm | 150 Degrees F | 162 sq. ft. | 11 | €243.37 | |
| 11Z795 | 500/625/750 fpm | 75% | 0.20/0.30/0.41" WC | 100% Synthetic Media | 3000 cfm | 150 Degrees F | 193 sq. ft. | 11 | €292.75 | |
| 11Z796 | 500/625/750 fpm | 85% | 0.28/0.38/0.49" WC | 100% Synthetic Media | 1500 cfm | 150 Degrees F | 92 sq. ft. | 14 | €160.52 | |
| 11Z798 | 500/625/750 fpm | 85% | 0.28/0.38/0.49" WC | 100% Synthetic Media | 2190 cfm | 150 Degrees F | 135 sq. ft. | 14 | €261.84 | |
| 11Z799 | 500/625/750 fpm | 85% | 0.28/0.38/0.49" WC | 100% Synthetic Media | 2872 cfm | 150 Degrees F | 162 sq. ft. | 14 | €263.26 |
