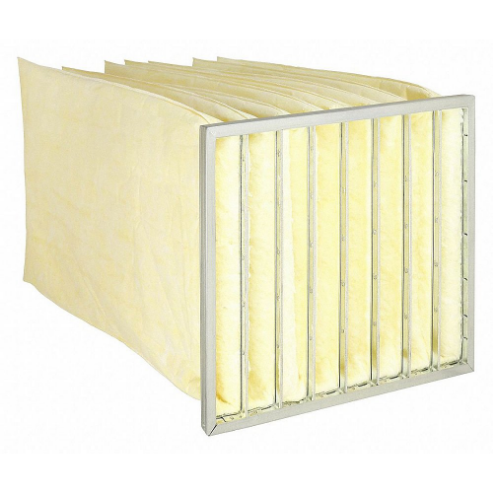

AIR HANDLER 3DVP7 Pocket Air Filter Fiberglass 24 x 24 x 15 Inch
Get it by Monday, Jun 16
€93.99 /unit
This product can only be shipped in multiples of 2Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Pocket Air Filter |
| Air Flow Rate | 500 FPM |
| Capacity Cfm | 2000 CFM |
| Filter Efficiency | 90% to 95% |
| Final Resistance | 1 in. wc |
| Frame Finish | Galvanized |
| Frame Material | Steel |
| Frame Size | 0.812" |
| Material | Fiberglass |
| Material Thickness | 24 ga. |
| Max. Temp. | 150°F |
| Media Color | Orange |
| Nominal Depth | 15" |
| Nominal Height | 24" |
| Nominal Width | 24" |
| Number Of Pockets | 8 |
| Actual Depth | 15" |
| Actual Filter Size | 23 3/8" x 23 3/8" x 15" |
| Actual Height | 23 3/8" |
| Actual Width | 23 3/8" |
| Air Filter Header Type | Single Header |
| Air Flow @ 300 Fpm | 1200 CFM |
| Air Flow @ 500 Fpm | 2000 CFM |
| Filter Efficiency - Air Filters | 90% to 95% |
| Filters Out | Cooking Oil, Copier Toner, Droplet Nuclei (Sneeze), Insecticide Dust, MERV 13-16 All Bacteria, Most Face Power, Most Smoke, Most Tobacco Smoke, Paint Pigments |
| Frame Or Header Material | Galvanized Steel |
| Gasket Location | None |
| Gasket Material | None |
| Initial Resistance @ 300 Fpm | 0.30 in. wc |
| Initial Resistance @ 500 Fpm | 0.50 in. wc |
| Max. Velocity | 500 FPM |
| Media Area | 40 sq. ft. |
| Media Material | Fiberglass |
| Nominal Filter Size | 24" x 24" x 15" |
| Performance Rating | MERV 14 |
| Recommended Final Resistance | 1 in. wc |
| Removes Particles Down To | 0.3 µmto 1 µm |
| Standards | UL 900 |
| Style - Air Filters | Bag |
| Ship weight (kg) | 1.75 |
| Ship height (cm) | 61.98 |
| Ship length (cm) | 60.71 |
| Ship width (cm) | 26.67 |
| HS code | 8421398090 |
| Country of Origin | US |
| Product | Model | Capacity Cfm | Nominal Filter Size | Nominal Height | Number Of Pockets | Price | |
|---|---|---|---|---|---|---|---|
 |
3DVP5 | 1000 | 24x12x15 | 12" | 4 | €66.80 |
