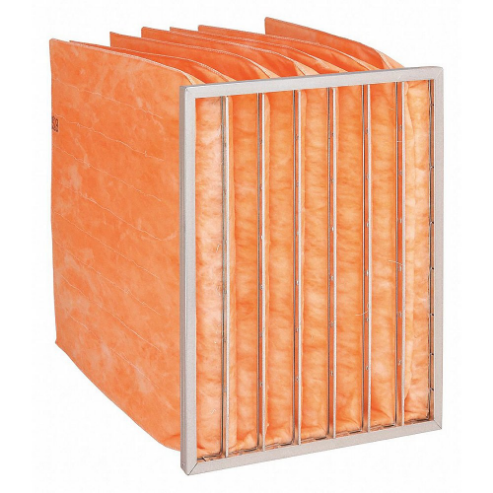

AIR HANDLER 3DVN6 Pocket Air Filter Fiberglass 20 x 24 x 22 Inch
Get it by Tuesday, Jun 17
€84.50 /unit
This product can only be shipped in multiples of 4Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Pocket Air Filter |
| Air Flow Rate | 500 FPM |
| Capacity Cfm | 1650 CFM |
| Filter Efficiency | 60% to 65% |
| Final Resistance | 1 in. wc |
| Frame Finish | Galvanized |
| Frame Material | Steel |
| Frame Size | 0.812" |
| Material | Fiberglass |
| Material Thickness | 24 ga. |
| Max. Temp. | 150°F |
| Media Color | Orange |
| Nominal Depth | 22" |
| Nominal Height | 20" |
| Nominal Width | 24" |
| Number Of Pockets | 7 |
| Actual Depth | 22" |
| Actual Filter Size | 23 3/8" x 11 3/8" x 22 |
| Actual Height | 23 3/8" |
| Actual Width | 19 3/8" |
| Air Filter Header Type | Single Header |
| Air Flow @ 300 Fpm | 1000 CFM |
| Air Flow @ 500 Fpm | 1667 CFM |
| Filter Efficiency - Air Filters | 60% to 65% |
| Filters Out | Auto Emission Particulates, Coal Dust, Humidifier Dust, Lead Dust, MERV 9-12 Legionella, Milled Flour, Nebulizer Droplets |
| Frame Or Header Material | Galvanized Steel |
| Gasket Location | None |
| Gasket Material | None |
| Initial Resistance @ 300 Fpm | 0.27 in. wc |
| Initial Resistance @ 500 Fpm | 0.45 in. wc |
| Max. Velocity | 500 FPM |
| Media Area | 51 sq. ft. |
| Media Material | Fiberglass |
| Nominal Filter Size | 24" x 20" x 22" |
| Performance Rating | MERV 11 |
| Recommended Final Resistance | 1 in. wc |
| Removes Particles Down To | 1 µm to 3 µm |
| Standards | UL 900 |
| Style - Air Filters | Bag |
| Ship weight (kg) | 1.86 |
| Ship height (cm) | 61.47 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 26.16 |
| HS code | 8421398090 |
| Country of Origin | US |
| Product | Model | Capacity Cfm | Material | Media Color | Nominal Depth | Nominal Filter Size | Price | |
|---|---|---|---|---|---|---|---|---|
 |
3DVN5 | 2000 | Synthetic | White | 29" | 20x24x29 | €81.68 |
