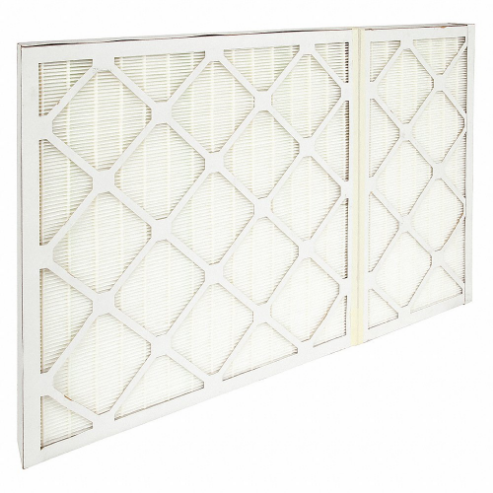

AIR HANDLER 33E966 Mini-pleat Filter 20 x 30 x 2 Merv 11
Get it by Tuesday, Jun 17
€191.97 /unit
This product can only be shipped in multiples of 6Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Minipleat Air Filter |
| Air Flow Rate | 500 FPM |
| Filter Pack Enclosure | Beverage Board Frame |
| Final Resistance | 1 in. wc |
| Initial Resistance | 0.27 in. wc |
| Max. Air Flow | 2415 CFM |
| Max. Temp. | 150°F |
| Media Area | 150 sq. ft. |
| Nominal Depth | 2" |
| Nominal Height | 20" |
| Nominal Width | 30" |
| Actual Depth | 1 3/4" |
| Actual Filter Size | 19 3/8" x 29 3/8" x 1 3/4" |
| Actual Height | 19 3/8" |
| Actual Width | 29 3/8" |
| Air Filter Header Type | No Header |
| Air Flow @ 300 Fpm | 1250 CFM |
| Air Flow @ 500 Fpm | 2083 CFM |
| Air Flow @ 625 Fpm | 2604 CFM |
| Filter Efficiency - Air Filters | 65% |
| Filters Out | Auto Emission Particulates, Coal Dust, Humidifier Dust, Lead Dust, MERV 9-12 Legionella, Milled Flour, Nebulizer Droplets |
| Frame Or Header Material | Beverage Board |
| Gasket Location | None |
| Gasket Material | None |
| Max. Velocity | 625 FPM |
| Media Color | White |
| Media Material | Fiberglass |
| Media Separator Construction | Glue |
| Nominal Filter Size | 20" x 30" x 2" |
| Performance Rating | MERV 11 |
| Recommended Final Resistance | 1 in. wc |
| Removes Particles Down To | 1 µm to 3 µm |
| Standards | UL 900 |
| Style - Air Filters | Box |
| Ship weight (kg) | 1.6 |
| Ship height (cm) | 52.07 |
| Ship length (cm) | 28.96 |
| Ship width (cm) | 77.98 |
| HS code | 8421398090 |
| Country of Origin | US |
