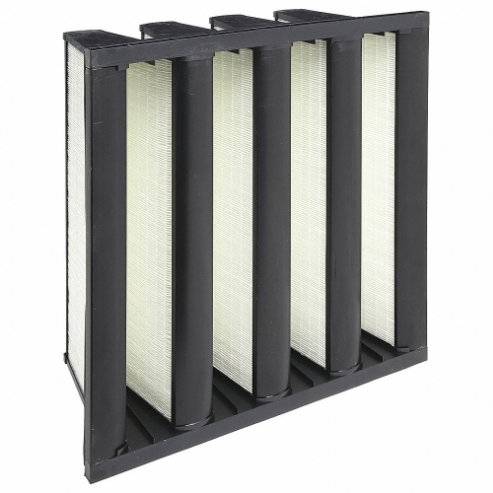

AIR HANDLER 33E931 V-bank Mp With Gasket 24x24x12 Merv 15
Get it by Tuesday, Jun 17
€391.60 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | V-Bank Air Filter |
| Air Flow Rate | 500 FPM |
| Filter Efficiency | 95% |
| Filter Pack Enclosure | Plastic Frame |
| Final Resistance | 1.5 in. wc |
| Initial Resistance | 0.34 in. wc |
| Max. Air Flow | 3000 CFM |
| Max. Temp. | 150°F |
| Media Area | 193 sq. ft. |
| Merv | 15 |
| Nominal Depth | 12" |
| Nominal Height | 24" |
| Nominal Width | 24" |
| Actual Depth | 11 1/2" |
| Actual Filter Size | 23 3/8" x 23 3/8" x 11 1/2" |
| Actual Height | 23 3/8" |
| Actual Width | 23 3/8" |
| Air Filter Header Type | Single Header |
| Air Flow @ 300 Fpm | 1200 CFM |
| Air Flow @ 500 Fpm | 2000 CFM |
| Air Flow @ 625 Fpm | 2500 CFM |
| Air Flow @ 750 Fpm | 3000 CFM |
| Filter Efficiency - Air Filters | 98% |
| Filters Out | Cooking Oil, Copier Toner, Droplet Nuclei (Sneeze), Insecticide Dust, MERV 13-16 All Bacteria, Most Face Power, Most Smoke, Most Tobacco Smoke, Paint Pigments |
| Frame Or Header Material | Plastic |
| Gasket Location | Downstream Face |
| Gasket Material | Foam |
| Initial Resistance @ 500 Fpm | 0.48 in. wc |
| Media Color | White |
| Media Material | Fiberglass |
| Nominal Filter Size | 24" x 24" x 12" |
| Number Of Vs | 4 |
| Performance Rating | MERV 15 |
| Recommended Final Resistance | 1.5 in. wc |
| Removes Particles Down To | 0.3 µmto 1 µm |
| Standards | UL 900 |
| Style - Air Filters | Box |
| Ship weight (kg) | 7.01 |
| Ship height (cm) | 61.47 |
| Ship length (cm) | 61.47 |
| Ship width (cm) | 30.23 |
| HS code | 8421398090 |
| Country of Origin | US |
