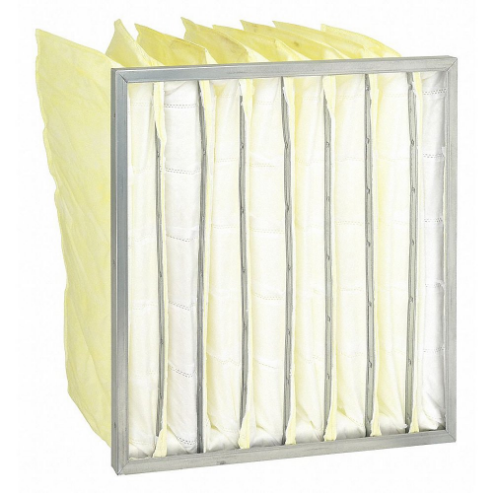

AIR HANDLER 2JUV7 Pocket Air Filter Synthetic 24 x 24 x 12 Inch
Get it by Tuesday, Jun 17
€39.82 /unit
This product can only be shipped in multiples of 12Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Pocket Air Filter |
| Air Flow Rate | 500 FPM |
| Capacity Cfm | 2000 CFM |
| Filter Efficiency | 95% |
| Final Resistance | 1 in. wc |
| Frame Finish | Galvanized |
| Frame Material | Steel |
| Frame Size | 0.812" |
| Initial Resistance | 0.8 in. wc |
| Material | Synthetic |
| Material Thickness | 24 ga. |
| Max. Temp. | 150°F |
| Media Area | 38 sq. ft. |
| Media Color | Yellow |
| Nominal Depth | 12" |
| Nominal Height | 24" |
| Nominal Width | 24" |
| Number Of Pockets | 8 |
| Actual Depth | 12" |
| Actual Filter Size | 23 3/8" x 23 3/8" x 12" |
| Actual Height | 23 3/8" |
| Actual Width | 23 3/8" |
| Air Filter Header Type | Single Header |
| Air Flow @ 300 Fpm | 1197 CFM |
| Air Flow @ 500 Fpm | 2000 CFM |
| Filter Efficiency - Air Filters | 90% to 95% |
| Filters Out | Cooking Oil, Copier Toner, Droplet Nuclei (Sneeze), Insecticide Dust, MERV 13-16 All Bacteria, Most Face Power, Most Smoke, Most Tobacco Smoke, Paint Pigments |
| Frame Or Header Material | Galvanized Steel |
| Gasket Location | None |
| Gasket Material | None |
| Initial Resistance @ 300 Fpm | 0.41 in. wc |
| Initial Resistance @ 500 Fpm | 0.68 in. wc |
| Max. Velocity | 500 FPM |
| Media Material | Synthetic |
| Nominal Filter Size | 24" x 24" x 12" |
| Performance Rating | MERV 14 |
| Recommended Final Resistance | 1 in. wc |
| Removes Particles Down To | 0.3 µmto 1 µm |
| Standards | UL 900 |
| Style - Air Filters | Bag |
| Ship weight (kg) | 2.34 |
| Ship height (cm) | 62.99 |
| Ship length (cm) | 62.99 |
| Ship width (cm) | 40.01 |
| HS code | 8421398090 |
| Country of Origin | IN |
| Product | Model | Capacity Cfm | Initial Resistance | Material | Max. Temp. | Media Area | Media Color | Nominal Depth | Nominal Filter Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2DVX1 | 2000 | 0.55"WC | Fiberglass | 150 Degrees F | 77 sq. ft. | Yellow | 22" | 24x24x22 | €144.49 | |
 |
2DVX2 | 2000 | 0.45"WC | Fiberglass | 150 Degrees F | 105 sq. ft. | Yellow | 30" | 24x24x30 | €182.04 | |
 |
2DYK3 | 1200 | - | Synthetic | 150 Degrees F | - | White | 22" | 20x24x22 | €79.76 | |
|
2GFK7 | 2000 | 0.58"WC | Fiberglass | 150 Degrees F | 53 sq. ft. | Yellow | 15" | 24x24x15 | €111.85 | |
 |
2GGG4 | 2000 | 0.98"WC | Synthetic | 150 Degrees F | - | Yellow | 10" | 24x24x10 | €61.18 | |
 |
2GGV6 | 1200 | - | Fiberglass | 150 Degrees F | - | Orange | 22" | 20x24x22 | €85.26 | |
 |
2GGW6 | 1000 | - | Fiberglass | 150 Degrees F | - | Orange | 22" | 12x24x22 | €86.75 |
