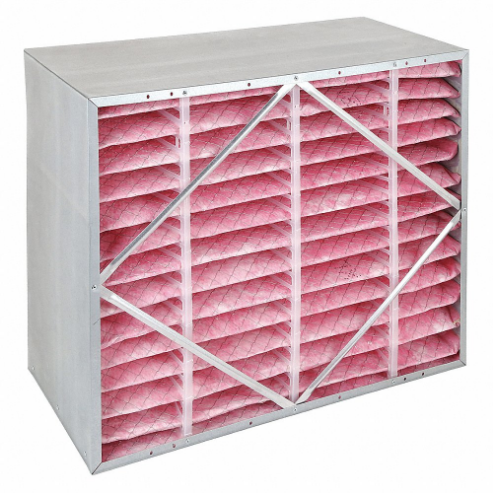

| Item | Rigid Cell Filter |
| Air Flow Rate | 500 FPM |
| Filter Efficiency | 65% |
| Final Recommended Resistance | 1.5 in. wc |
| Frame/header Material | No Header |
| Header | None |
| Initial Resistance | 0.42 in. wc |
| Max. Air Flow | 500 FPM |
| Max. Temp. | 180°F |
| Media Area | 40 sq. ft. |
| Nominal Depth | 12" |
| Nominal Height | 20" |
| Nominal Width | 24" |
| Actual Depth | 11 1/2" |
| Actual Filter Size | 19 3/8" x 23 3/8" x 11 1/2" |
| Actual Height | 19 3/8" |
| Actual Width | 23 3/8" |
| Air Filter Header Type | No Header |
| Air Flow @ 300 Fpm | 1000 CFM |
| Air Flow @ 500 Fpm | 1666 CFM |
| Air Flow @ 625 Fpm | 2083 CFM |
| Filter Efficiency - Air Filters | 65% |
| Filters Out | Auto Emission Particulates, Coal Dust, Humidifier Dust, Lead Dust, MERV 9-12 Legionella, Milled Flour, Nebulizer Droplets |
| Frame Or Header Material | Galvanized Steel |
| Gasket Location | None |
| Gasket Material | None |
| Initial Resistance @ 300 Fpm | 0.19 in. wc |
| Initial Resistance @ 500 Fpm | 0.31 in. wc |
| Max. Velocity | 500 FPM |
| Media Color | Yellow |
| Media Material | Fiberglass |
| Media Separator Construction | Metal Pleat |
| Nominal Filter Size | 20" x 24" x 12" |
| Performance Rating | MERV 11 |
| Recommended Final Resistance | 1.5 in. wc |
| Removes Particles Down To | 1 µm to 3 µm |
| Standards | UL CLASSIFIED |
| Style - Air Filters | Box |
| Ship weight (kg) | 6.1 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| HS code | 8421398090 |
| Country of Origin | US |
| Product | Model | Final Recommended Resistance | Initial Resistance | Item | Max. Air Flow | Max. Temp. | Media Area | Nominal Depth | Nominal Filter Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2GGE6 | 1.50" WC | 0.45" WC | Cartridge Filter | 625 fpm | 250 Degrees F | 47 sq. ft. | 12" | 20x24x12 | €244.59 | |
 |
2GGF2 | 1.50" WC | 0.45" WC | Cartridge Filter | 625 fpm | 250 Degrees F | 73 sq. ft. | 12" | 20x20x12 | €210.14 | |
 |
2GGF6 | 1.50" WC | 0.45" WC | Cartridge Filter | 625 fpm | 200 Degrees F | 51 sq. ft. | 6" | 24x24x6 | €246.20 | |
 |
2GGG1 | 1.50" WC | 0.45" WC | Cartridge Filter | 625 fpm | 250 Degrees F | 43 sq. ft. | 6" | 20x24x6 | €161.24 | |
|
2GGG5 | 1.50" WC | 0.45" WC | Cartridge Filter | 625 fpm | 200 Degrees F | 23 sq. ft. | 6" | 12x24x6 | €121.33 | |
 |
2GGG9 | 1.50" WC | 0.45" WC | Cartridge Filter | 625 fpm | 250 Degrees F | 35 sq. ft. | 6" | 20x20x6 | €204.62 | |
 |
2GGH4 | 1.50" WC | 0.45" WC | Cartridge Filter | 625 fpm | 250 Degrees F | 105 sq. ft. | 12" | 24x24x12 | €194.02 |
