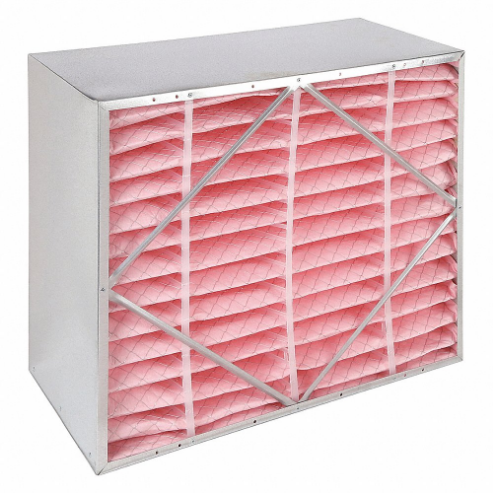

AIR HANDLER 2JTY8 Rigid Cell Filter 20 x 24 x 12 Inch
Get it by Tuesday, Jun 17
€207.68 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Rigid Cell Filter |
| Air Flow Rate | 500 FPM |
| Filter Efficiency | 45% |
| Final Recommended Resistance | 1.5 in. wc |
| Frame/header Material | No Header |
| Header | None |
| Initial Resistance | 0.32 in. wc |
| Max. Air Flow | 500 FPM |
| Max. Temp. | 150°F |
| Media Area | 48 sq. ft. |
| Nominal Depth | 12" |
| Nominal Height | 20" |
| Nominal Width | 24" |
| Actual Depth | 11 1/2" |
| Actual Filter Size | 19 3/8" x 23 3/8" x 11 1/2" |
| Actual Height | 19 3/8" |
| Actual Width | 23 3/8" |
| Air Filter Header Type | No Header |
| Air Flow @ 300 Fpm | 1000 CFM |
| Air Flow @ 500 Fpm | 1666 CFM |
| Air Flow @ 625 Fpm | 2083 CFM |
| Filter Efficiency - Air Filters | 45% |
| Filters Out | Auto Emission Particulates, Coal Dust, Humidifier Dust, Lead Dust, MERV 9-12 Legionella, Milled Flour, Nebulizer Droplets |
| Frame Or Header Material | Galvanized Steel |
| Gasket Location | None |
| Gasket Material | None |
| Initial Resistance @ 300 Fpm | 0.15 in. wc |
| Initial Resistance @ 500 Fpm | 0.25 in. wc |
| Max. Velocity | 500 FPM |
| Media Color | Yellow |
| Media Material | Synthetic |
| Media Separator Construction | Metal Pleat |
| Nominal Filter Size | 20" x 24" x 12" |
| Performance Rating | MERV 9 |
| Recommended Final Resistance | 1.5 in. wc |
| Removes Particles Down To | 1 µm to 3 µm |
| Standards | UL CLASSIFIED |
| Style - Air Filters | Box |
| Ship weight (kg) | 6.24 |
| Ship height (cm) | 63.5 |
| Ship length (cm) | 62.23 |
| Ship width (cm) | 33.02 |
| HS code | 8421398090 |
| Country of Origin | US |
| Product | Model | Initial Resistance | Max. Temp. | Media Area | Nominal Depth | Nominal Filter Size | Nominal Height | Nominal Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
2GHV1 | 0.32" WC | 180 Degrees F | 25 sq. ft. | 12" | 12x24x12 | 12" | 24" | €148.33 | |
|
2GHV5 | 0.32" WC | 180 Degrees F | 33 sq. ft. | 12" | 20x20x12 | 20" | 20" | €157.86 | |
|
2GHV9 | 0.32" WC | 180 Degrees F | 40 sq. ft. | 12" | 20x24x12 | 20" | 24" | €160.87 | |
|
2GHW5 | 0.32" WC | 180 Degrees F | 50 sq. ft. | 12" | 24x24x12 | 24" | 24" | €197.93 | |
 |
2JTY6 | 0.32" WC | 180 Degrees F | 33 sq. ft. | 12" | 20x20x12 | 20" | 20" | €156.08 | |
 |
2JUF3 | 0.42" WC | 150 Degrees F | 15 sq. ft. | 6" | 12x24x6 | 12" | 24" | €148.38 | |
|
4YVA2 | 0.14" WC | 180 Degrees F | 25 sq. ft. | 12" | 12x24x12 | 12" | 24" | - | RFQ
|
