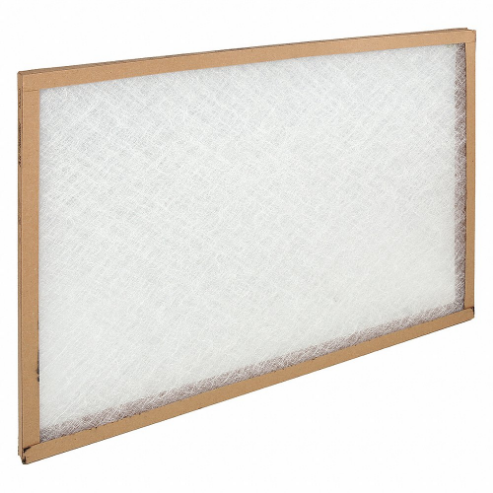

AIR HANDLER 2JBG5 Air Filter 20 x 36 x 1 Inch Fiberglass
Get it by Tuesday, Jun 17
€12.04 /unit
This product can only be shipped in multiples of 12Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Air Filter |
| Air Flow Rate | 300 FPM |
| Final Resistance | 0.5 in. wc |
| Frame Material | Chipboard |
| Frame Type | Heavy Duty Chipboard |
| Initial Resistance | 0.07 in. wc |
| Material | Fiberglass |
| Max. Air Flow | 777 FPM |
| Max. Temp. | 150°F |
| Nominal Depth | 1" |
| Nominal Height | 20" |
| Nominal Width | 36" |
| Actual Depth | 3/4" |
| Actual Filter Size | 19 1/2" x 36 1/2" x 3/4" |
| Actual Height | 19 1/2" |
| Actual Width | 36 1/2" |
| Air Flow @ 300 Fpm | 1500 CFM |
| Filter Frame Color | Brown |
| Filters Out | Cat & Dog Dander, Cement Dust, Dust Mites, Dusting Aids, Fabric Protector, Hair Spray, Mold, Pudding Mix, Spores |
| Frame Or Header Material | Chipboard |
| Initial Resistance @ 300 Fpm | 0.07 in. wc |
| Media Area | 5 sq. ft. |
| Media Color | White |
| Media Material | Fiberglass |
| Metal Grill | No |
| Nominal Filter Size | 20" x 36" x 1" |
| Performance Rating | MERV 1 |
| Recommended Final Resistance | 0.5 in. wc |
| Standards | UL 900 |
| Style - Air Filters | Panel |
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 30.48 |
| Ship length (cm) | 66.04 |
| Ship width (cm) | 76.2 |
| HS code | 8421398090 |
| Country of Origin | US |
| Product | Model | Actual Height | Actual Width | Flow Rate | Frame Type | Material | Max. Temp. | Media Area | Nominal Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1W507 | - | - | - | Heavy-Duty Chipboard | Fiberglass | 150 Degrees F | - | 1" | €10.16 | |
 |
499J13 | 11 3/8" | 23 3/8" | 600 cfm | - | Synthetic | 160 Deg. F | 25 sq. ft. | 2" | €100.85 | |
|
499J33 | 15 1/2" | 24 1/2" | 833 cfm | - | Synthetic | 160 Deg. F | 35 sq. ft. | 2" | €119.91 | |
|
499J35 | 19 1/2" | 19 1/2" | 833 cfm | - | Synthetic | 160 Deg. F | 35 sq. ft. | 2" | €139.43 | |
|
499J41 | 23 3/8" | 23 3/8" | 1200 cfm | - | Synthetic | 160 Deg. F | 50 sq. ft. | 2" | €139.53 | |
|
499J43 | 11 3/8" | 23 3/8" | 600 cfm | - | Synthetic | 160 Deg. F | 25 sq. ft. | 2" | €102.62 | |
 |
5W499 | - | - | - | Heavy-Duty Chipboard | Fiberglass | 150 Degrees F | - | 1" | €8.97 |
