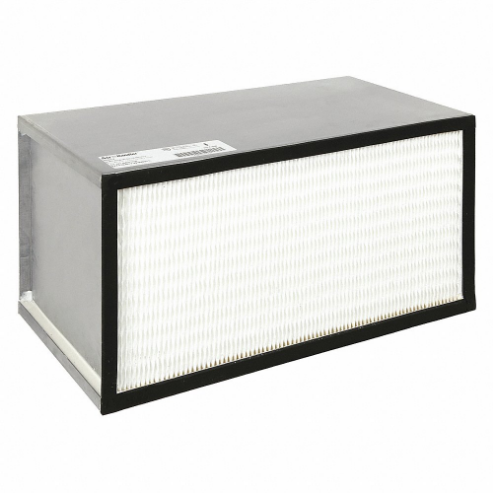

AIR HANDLER 2GHJ8 Microfiber Hepa Air Filter 12 x 24 x 11-1/2
Get it by Monday, Jun 16
€620.23 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Microfiber HEPA Air Filter |
| Air Flow Rate | 1200 CFM |
| Dop Efficiency | 99.99% |
| Final Recommended Resistance | 2.4 in. wc |
| Initial Resistance | 1 in. wc |
| Max. Temp. | 250°F |
| Actual Depth | 11 1/2" |
| Actual Filter Size | 12" x 24" x 11 1/2" |
| Actual Height | 12" |
| Actual Width | 24" |
| Air Filter Frame Style | Box |
| Air Flow @ 300 Fpm | 600 CFM |
| Air Flow @ 500 Fpm | 1000 CFM |
| Air Flow @ 625 Fpm | 1250 CFM |
| Common Applications | General Use |
| Faceguard Location | No Faceguard |
| Faceguard Material | None |
| Filter Efficiency - Air Filters | 99.99% |
| Filters Out | All Combustion Smoke, Carbon Dust, MERV 17-20 Virus, Sea Salt |
| Frame Or Header Material | Galvanized Steel |
| Gasket Location | Downstream Face |
| Gasket Material | Neoprene |
| Max. Velocity | 600 FPM |
| Media Color | White |
| Media Material | Microglass |
| Nominal Depth | 12" |
| Nominal Filter Size | 12" x 24" x 12" |
| Nominal Height | 12" |
| Nominal Width | 24" |
| Performance Rating | HEPA |
| Recommended Final Resistance | 2.4 in. wc |
| Removes Particles Down To | 0.3 µmto 1 µm |
| Standards | UL 900 |
| Style - Air Filters | Box |
| Ship weight (kg) | 17.06 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| HS code | 8421398090 |
| Country of Origin | US |
| Product | Model | Actual Depth | Actual Height | Actual Width | Air Flow | Final Recommended Resistance | Initial Resistance | Item | Max. Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2EJY1 | 10" | 23.5" | 47.5" | 800 cfm | - | 0.56" WC | HEPA Ducted Terminal Module | 140 Degrees F | €1,156.37 | |
|
2EJY2 | - | - | - | 800 cfm | - | 0.56" WC | HEPA Ducted Terminal Module | 140 Degrees F | €1,156.37 | |
 |
2EJY3 | 3" | 23.5" | 47.5" | 800 cfm | - | 0.56" WC | HEPA Panel | 140 Degrees F | €684.32 | |
 |
2EJY4 | 3" | 23.5" | 47.5" | 800 cfm | - | 0.68" WC | ULPA Panel | 140 Degrees F | €752.74 | |
 |
2GHH1 | - | - | - | 2400 cfm | 2.40" WC | 1" WC | Microfiber HEPA Air Filter | 250 Degrees F | €1,203.43 | |
 |
19RR59 | 2.5" | 12" | 12" | 75 fpm | 1.04" WC | 0.52" WC | Microfiber HEPA Air Filter | 250 Degrees F | €525.21 | |
 |
19RR60 | 2.5" | 24" | 12" | 165 fpm | 1.04" WC | 0.52" WC | Microfiber HEPA Air Filter | 250 Degrees F | €569.81 |
