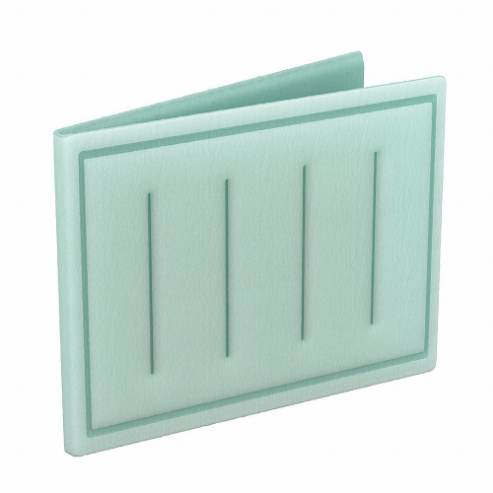

| Item | Link Air Filter |
| Air Flow Rate | 500 FPM |
| Filter Efficiency | 25% |
| Final Resistance | 1 in. wc |
| Frame Type | Internal Wire Heat Sealed Inside Layers |
| Initial Resistance | 0.28 in. wc |
| Material | Polyester |
| Max. Temp. | 120°F |
| Number Of Links | 2 |
| Ply | 2 |
| Section Height | 24" |
| Section Length | 18" |
| Sections Per Carton | 2 |
| Thickness | 1" |
| Total Length | 36" |
| Actual Filter Size | 23 1/4" x 35 1/4" x 1" |
| Actual Height | 23 1/4" |
| Actual Thickness | 1" |
| Actual Width | 35 1/4" |
| Air Flow @ 300 Fpm | 1200 CFM |
| Air Flow @ 500 Fpm | 1968 CFM |
| Filters Out | Cat & Dog Dander, Cement Dust, Dust Mites, Dusting Aids, Fabric Protector, Hair Spray, MERV 5-8 Mold, Pudding Mix, Spores |
| Frame Or Header Material | 9 ga. Steel Wire |
| Initial Resistance @ 500 Fpm | 0.50 in. wc |
| Link Filter Total Width | 36" |
| Max. Velocity | 500 FPM |
| Media Color | Green |
| Media Material | Synthetic |
| Nominal Filter Size | 24" x 36" x 1" |
| Nominal Height | 24" |
| Nominal Thickness | 1" |
| Number Of Ply | 2 |
| Number Of Sections | 2 |
| Performance Rating | MERV 8 |
| Recommended Final Resistance | 1 in. wc |
| Section Width | 18" |
| Standards | UL 900 |
| Style - Air Filters | Panel |
| Ship weight (kg) | 12.42 |
| Ship height (cm) | 60.96 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 60.96 |
| HS code | 8421398090 |
| Country of Origin | US |
