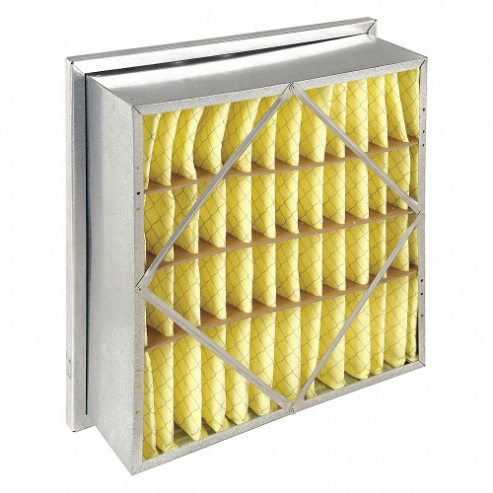

| Item | Rigid Cell Filter |
| Air Flow Rate | 500 FPM |
| Filter Efficiency | 95% |
| Final Recommended Resistance | 1.5 in. wc |
| Header | Single |
| Initial Resistance | 0.71 in. wc |
| Max. Air Flow | 500 FPM |
| Max. Temp. | 180°F |
| Media Area | 25 sq. ft. |
| Nominal Depth | 6" |
| Nominal Height | 24" |
| Nominal Width | 24" |
| Actual Depth | 5 1/2" |
| Actual Filter Size | 23 3/8" x 23 3/8" x 5 1/2" |
| Actual Height | 23 3/8" |
| Actual Width | 23 3/8" |
| Air Filter Header Type | Single Header |
| Air Flow @ 300 Fpm | 1200 CFM |
| Air Flow @ 500 Fpm | 2000 CFM |
| Air Flow @ 625 Fpm | 2500 CFM |
| Filter Efficiency - Air Filters | 95% |
| Filters Out | Cooking Oil, Copier Toner, Droplet Nuclei (Sneeze), Insecticide Dust, MERV 13-16 All Bacteria, Most Face Power, Most Smoke, Most Tobacco Smoke, Paint Pigments |
| Frame Or Header Material | Galvanized Steel |
| Gasket Location | None |
| Gasket Material | None |
| Initial Resistance @ 300 Fpm | 0.50 in. wc |
| Initial Resistance @ 500 Fpm | 0.55 in. wc |
| Max. Velocity | 500 FPM |
| Media Color | Pink |
| Media Material | Synthetic |
| Media Separator Construction | Metal Pleat |
| Nominal Filter Size | 24" x 24" x 6" |
| Performance Rating | MERV 14 |
| Recommended Final Resistance | 1.5 in. wc |
| Removes Particles Down To | 0.3 µm to 1 µm |
| Standards | UL CLASSIFIED |
| Style - Air Filters | Box |
