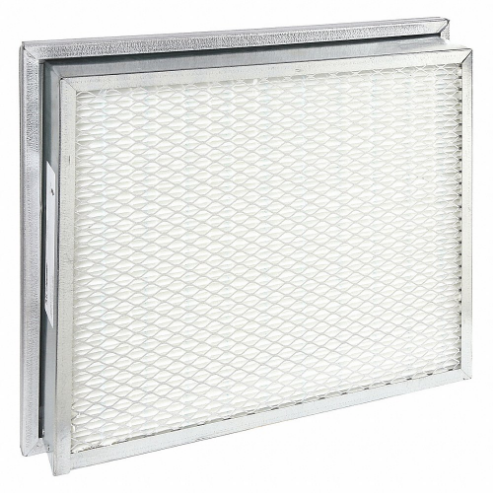

AIR HANDLER 2GFH8 Economy Minipleat Filter 20 x 24 x 4 Merv 11
Get it by Tuesday, Jun 17
€190.77 /unit
This product can only be shipped in multiples of 3Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Minipleat Air Filter |
| Air Flow Rate | 500 FPM |
| Filter Efficiency | 65% |
| Filter Pack Enclosure | Metal Frame |
| Final Resistance | 1.5 in. wc |
| Initial Resistance | 0.27 in. wc |
| Max. Air Flow | 1920 CFM |
| Max. Temp. | 150°F |
| Media Area | 44 sq. ft. |
| Nominal Depth | 4" |
| Nominal Height | 20" |
| Nominal Width | 24" |
| Actual Depth | 3 3/4" |
| Actual Filter Size | 19 3/8" x 23 3/8" x 3 3/4" |
| Actual Height | 19 3/8" |
| Actual Width | 23 3/8" |
| Air Filter Header Type | Single Header |
| Air Flow @ 300 Fpm | 1000 CFM |
| Air Flow @ 500 Fpm | 1667 CFM |
| Air Flow @ 625 Fpm | 2083 CFM |
| Filter Efficiency - Air Filters | 65% |
| Filters Out | Auto Emission Particulates, Coal Dust, Humidifier Dust, Lead Dust, MERV 9-12 Legionella, Milled Flour, Nebulizer Droplets |
| Frame Or Header Material | Metal |
| Gasket Location | None |
| Gasket Material | None |
| Initial Resistance @ 500 Fpm | 0.55 in. wc |
| Max. Velocity | 625 FPM |
| Media Color | White |
| Media Material | Fiberglass |
| Media Separator Construction | Glue |
| Nominal Filter Size | 20" x 24" x 4" |
| Performance Rating | MERV 11 |
| Recommended Final Resistance | 1.5 in. wc |
| Removes Particles Down To | 1 µm to 3 µm |
| Standards | UL 900 |
| Style - Air Filters | Box |
| Ship weight (kg) | 3.83 |
| Ship height (cm) | 62.74 |
| Ship length (cm) | 61.21 |
| Ship width (cm) | 32 |
| HS code | 8421398090 |
| Country of Origin | US |
| Product | Model | Filter Efficiency | Initial Resistance | Item | Material | Max. Air Flow | Media Area | Merv | Nominal Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2GFA7 | 65% | 0.27" WC | Minipleat Air Filter | 100% Synthetic Media | 1000 cfm | 23 sq. ft. | 11 | 4" | €121.56 | |
 |
2GFC2 | 65% | 0.27" WC | Minipleat Air Filter | 100% Synthetic Media | 1920 cfm | 44 sq. ft. | 11 | 4" | €165.99 | |
 |
2GFC6 | 65% | 0.27" WC | Minipleat Air Filter | 100% Synthetic Media | 1920 cfm | 44 sq. ft. | 11 | 4" | €165.17 | |
 |
2GFD1 | 65% | 0.27" WC | Minipleat Air Filter | 100% Synthetic Media | 2000 cfm | 52 sq. ft. | 11 | 4" | €178.05 | |
|
2GFD5 | 85% | 0.46" WC | Minipleat Air Filter | 100% Synthetic Media | 1000 cfm | 23 sq. ft. | 13 | 4" | €117.46 | |
 |
2GFE7 | 85% | 0.46" WC | Minipleat Air Filter | 100% Synthetic Media | 2000 cfm | 52 sq. ft. | 13 | 4" | €175.16 | |
|
2GFF2 | 95% | 0.48" WC | Minipleat Air Filter | 100% Synthetic Media | 1000 cfm | 31 sq. ft. | 14 | 4" | €121.98 |
