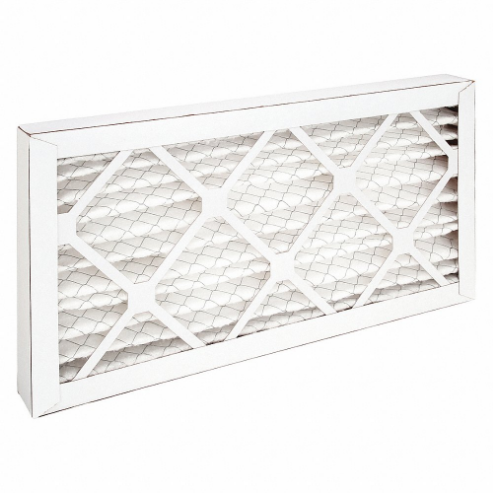

AIR HANDLER 2EKH5 Green Pleat 10 x 20 x 2 Merv13
Get it by Tuesday, Jun 17
€18.46 /unit
This product can only be shipped in multiples of 12Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Green Pleated Filter |
| Actual Depth | 1 3/4" |
| Actual Height | 9 1/2" |
| Actual Width | 19 1/2" |
| Final Recommended Resistance | 1 in. wc |
| Frame | Yes |
| Frame Material | Chipboard |
| Frame Type | Moisture Resistant Die Cut Chipboard |
| High Initial Resistance | 0.29 in. wc |
| High Velocity | 500 FPM |
| Material Properties | Moisture Resistant Die Cut |
| Max. Temp. | 180°F |
| Max. Velocity | 500 FPM |
| Media Area | 6.1 sq. ft. |
| Nominal Depth | 2" |
| Nominal Filter Size | 10" x 20" x 2" |
| Nominal Height | 10" |
| Nominal Pleat | 85% |
| Nominal Width | 20" |
| Pleats Per Linear Feet | 15 |
| Actual Filter Size | 9 1/2" x 19 1/2" x 1 3/4" |
| Air Filter Capacity | High Capacity |
| Air Flow @ 300 Fpm | 417 CFM |
| Air Flow @ 500 Fpm | 694 CFM |
| Common Applications | LEED, Green |
| Filter Efficiency - Air Filters | 85% |
| Filter Frame Color | White |
| Filters Out | Cooking Oil, Copier Toner, Droplet Nuclei (Sneeze), Insecticide Dust, MERV 13-16 All Bacteria, Most Face Powder, Most Smoke, Paint Pigments |
| Frame Or Header Material | Beverage Board |
| Gasket Location | None |
| Gasket Material | None |
| Initial Resistance @ 300 Fpm | 0.22 in. wc |
| Initial Resistance @ 500 Fpm | 0.37 in. wc |
| Media Color | White |
| Media Material | Synthetic |
| Performance Rating (meets Or Exceeds) | MERV 13 |
| Pleats Per Linear Foot | 12 |
| Standards | UL 900 CLASSIFIED |
| Style - Air Filters | Panel |
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 52.32 |
| Ship length (cm) | 57.66 |
| Ship width (cm) | 31.5 |
| HS code | 5911900080 |
| Country of Origin | US |
| Product | Model | Actual Depth | Actual Height | Actual Width | High Initial Resistance | High Velocity | Media Area | Nominal Depth | Nominal Filter Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
11C857 | 3/4" | 9.5" | 19.5" | 0.25"WC | 375 fpm | 2.7 sq. ft. | 1" | 10x20x1 | €19.21 | |
|
11C858 | 3/4" | 9.375" | 23.375" | 0.25"WC | 375 fpm | 3.9 sq. ft. | 1" | 10x24x1 | €17.88 | |
|
11C859 | 3/4" | 9.75" | 24.75" | 0.25"WC | 375 fpm | 4 sq. ft. | 1" | 10x25x1 | €18.23 | |
 |
11C860 | 3/4" | 11.75" | 11.75" | 0.25"WC | 375 fpm | 2.3 sq. ft. | 1" | 12x12x1 | €21.78 | |
 |
11C861 | 3/4" | 11.75" | 19.75" | 0.25"WC | 375 fpm | 3.1 sq. ft. | 1" | 12x20x1 | €13.49 | |
|
11C862 | 3/4" | 11.375" | 23.375" | 0.25"WC | 375 fpm | 3.7 sq. ft. | 1" | 12x24x1 | €24.69 | |
|
11C863 | 3/4" | 11.75" | 24.75" | 0.25"WC | 375 fpm | 4.8 sq. ft. | 1" | 12x25x1 | €18.88 |
