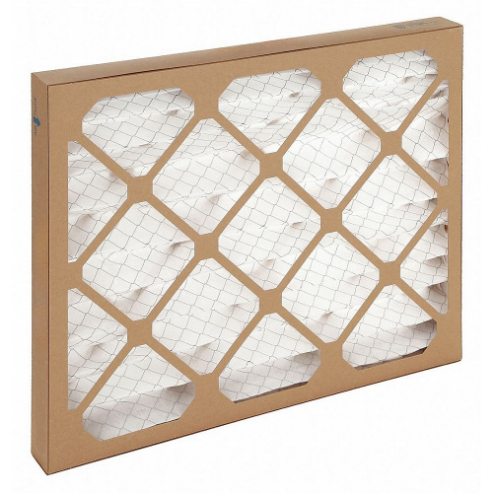

AIR HANDLER 2DYV2 High Capacity Pleated Filter 16 x 20 x 2 Merv11
Get it by Tuesday, Jun 17
€12.81 /unit
This product can only be shipped in multiples of 12Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | High Capacity Pleated Filter |
| Actual Depth | 1 3/4" |
| Actual Height | 15 1/2" |
| Actual Width | 19 1/2" |
| Final Recommended Resistance | 1 in. wc |
| Frame | Yes |
| Frame Material | Chipboard |
| Frame Type | Moisture Resistant Die Cut Chipboard |
| High Initial Resistance | 0.3 in. wc |
| High Velocity | 500 FPM |
| Material Properties | Moisture Resistant Die Cut |
| Max. Temp. | 180°F |
| Max. Velocity | 500 FPM |
| Media Area | 9.8 sq. ft. |
| Nominal Depth | 2" |
| Nominal Filter Size | 16" x 20" x 2" |
| Nominal Height | 16" |
| Nominal Width | 20" |
| Pleats Per Linear Feet | 10 |
| Actual Filter Size | 15 1/2" x 19 1/2" x 1 3/4" |
| Air Filter Capacity | High Capacity |
| Air Flow @ 300 Fpm | 667 CFM |
| Air Flow @ 500 Fpm | 1111 CFM |
| Common Applications | General Use |
| Filter Efficiency - Air Filters | 65% |
| Filter Frame Color | White |
| Filters Out | Auto Emission Particulates, Coal Dust, Humidifier Dust, Lead Dust, MERV 9-12 Legionella, Milled Flour, Nebulizer Droplets |
| Frame Or Header Material | Beverage Board |
| Gasket Location | None |
| Gasket Material | None |
| Initial Resistance @ 300 Fpm | 0.20 in. wc |
| Initial Resistance @ 500 Fpm | 0.33 in. wc |
| Media Color | White |
| Media Material | Synthetic |
| Performance Rating (meets Or Exceeds) | MERV 11 |
| Pleats Per Linear Foot | 19 |
| Standards | UL 900 CLASSIFIED |
| Style - Air Filters | Panel |
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 60.96 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 50.8 |
| HS code | 8421398090 |
| Country of Origin | US |
| Product | Model | Actual Depth | Actual Height | Actual Width | Frame Type | High Initial Resistance | High Velocity | Item | Media Area | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2DYD3 | 1.75" | 19.75" | 23.75" | Moisture Resistant Die Cut Chipboard | 0.38"WC | 500 fpm | High Capacity Pleated Filter | 14.8 sq. ft. | €17.49 | |
|
2DYD7 | 1.75" | 19.75" | 24.75" | Moisture Resistant Die Cut Chipboard | 0.38"WC | 500 fpm | High Capacity Pleated Filter | 15.5 sq. ft. | €17.10 | |
 |
2DYE2 | 1.75" | 23.75" | 23.75" | Moisture Resistant Die Cut Chipboard | 0.38"WC | 500 fpm | High Capacity Pleated Filter | 17.6 sq. ft. | €18.13 | |
|
2DYE6 | 1.75" | 24.75" | 24.75" | Moisture Resistant Die Cut Chipboard | 0.30"WC | 500 fpm | High Capacity Pleated Filter | 19 sq. ft. | €19.25 | |
 |
2DYE9 | 3.625" | 11.75" | 23.75" | Moisture Resistant Die Cut Chipboard | 0.38"WC | 625 fpm | High Capacity Pleated Filter | 16.5 sq. ft. | €24.10 | |
 |
2DYF4 | 3.625" | 15.75" | 19.75" | Moisture Resistant Die Cut Chipboard | 0.38"WC | 625 fpm | High Capacity Pleated Filter | 18 sq. ft. | €29.53 | |
 |
2DYF8 | 3.625" | 15.5" | 24.5" | Moisture Resistant Die Cut Chipboard | 0.38"WC | 625 fpm | High Capacity Pleated Filter | 22.6 sq. ft. | €35.45 |
