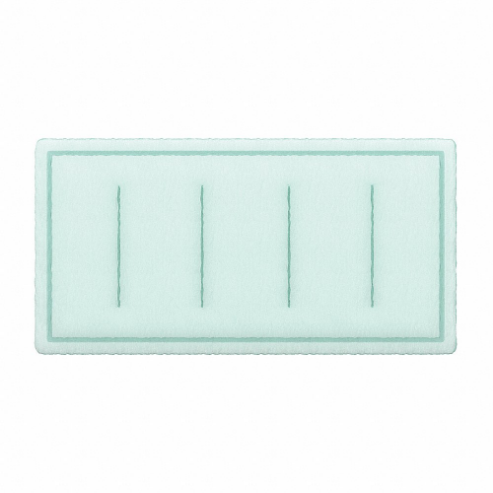

| Item | Two Ply Poly Ring Panel |
| Filter Efficiency | 0.25% |
| Final Resistance | 1 in. wc |
| Frame Type | Internal Wire, Heat Sealed Inside The Polyester Layers |
| Height | 10" |
| Initial Resistance | 0.28 in. wc |
| Max. Temp. | 150°F |
| Thickness | 1" |
| Width | 20" |
| Actual Filter Size | 9 1/4" x 19 1/4" x 1" |
| Actual Height | 9 1/4" |
| Actual Thickness | 1" |
| Actual Width | 19 1/4" |
| Air Flow @ 300 Fpm | 1200 CFM |
| Air Flow @ 500 Fpm | 1968 CFM |
| Filter Efficiency - Air Filters | 25% |
| Filters Out | Cat & Dog Dander, Cement Dust, Dust Mites, Dusting Aids, Fabric Protector, Hair Spray, MERV 5-8 Mold, Pudding Mix, Spores |
| Frame Or Header Material | 9 ga. Steel Wire |
| Initial Resistance @ 500 Fpm | 0.50 in. wc |
| Max. Velocity | 500 FPM |
| Media Color | Green |
| Media Material | Synthetic |
| Nominal Filter Size | 10" x 20" x 1" |
| Nominal Height | 10" |
| Nominal Thickness | 1" |
| Number Of Ply | 2 |
| Number Of Sections | 1 |
| Performance Rating | MERV 8 |
| Recommended Final Resistance | 1 in. wc |
| Section Width | 20" |
| Standards | UL 900 |
| Style - Air Filters | Panel |
| Ship weight (kg) | 0.29 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| HS code | 8421398090 |
| Country of Origin | US |
| Product | Model | Filter Efficiency | Frame Type | Height | Item | Max. Temp. | Width | Price | |
|---|---|---|---|---|---|---|---|---|---|
|
2DXR7 | 0.25 | Internal Wire, Heat Sealed Inside the Polyester Layers | 12" | Two Ply Poly Ring Panel | 150 Degrees F | 24" | €10.74 | |
 |
2DXT1 | 0.25 | Internal Wire, Heat Sealed Inside the Polyester Layers | 15" | Two Ply Poly Ring Panel | 150 Degrees F | 20" | €13.42 | |
 |
2DXT4 | 0.25 | Internal Wire, Heat Sealed Inside the Polyester Layers | 14" | Two Ply Poly Ring Panel | 150 Degrees F | 16" | €14.24 | |
 |
2DXT7 | 0.25 | Internal Wire, Heat Sealed Inside the Polyester Layers | 16" | Two Ply Poly Ring Panel | 150 Degrees F | 16" | €11.16 | |
|
2DXU1 | 0.25 | Internal Wire, Heat Sealed Inside the Polyester Layers | 16" | Two Ply Poly Ring Panel | 150 Degrees F | 18" | €13.28 | |
|
2DXU4 | 0.25 | Internal Wire, Heat Sealed Inside the Polyester Layers | 16" | Two Ply Poly Ring Panel | 150 Degrees F | 20" | €11.04 | |
 |
2DXU7 | 0.25 | Internal Wire, Heat Sealed Inside the Polyester Layers | 16" | Two Ply Poly Ring Panel | 150 Degrees F | 22" | €19.89 |
