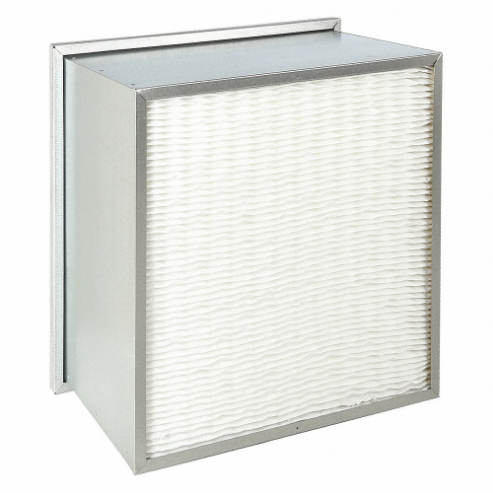

AIR HANDLER 20HN72 Minipleat 500cfm 24 Inch x 24 Inch x 12 Inch
Get it by Tuesday, Jun 17
€350.59 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Minipleat Air Filter |
| Air Flow Rate | 500 CFM |
| Filter Efficiency | 95% |
| Final Resistance | 1.5 in. wc |
| Initial Resistance | 0.5 in. wc |
| Material | Fiberglass |
| Max. Air Flow | 500 CFM |
| Max. Temp. | 150°F |
| Nominal Depth | 11 1/2" |
| Nominal Height | 24" |
| Nominal Width | 24" |
| Actual Depth | 11 1/2" |
| Actual Filter Size | 24" x 24" x 11 1/2" |
| Actual Height | 24" |
| Actual Width | 24" |
| Air Filter Header Type | Single Header |
| Air Flow @ 300 Fpm | 1200 CFM |
| Air Flow @ 500 Fpm | 2000 CFM |
| Air Flow @ 625 Fpm | 2500 CFM |
| Filter Efficiency - Air Filters | 95% |
| Filters Out | Cooking Oil, Copier Toner, Droplet Nuclei (Sneeze), Insecticide Dust, MERV 13-16 All Bacteria, Most Face Power, Most Smoke, Most Tobacco Smoke, Paint Pigments |
| Frame Or Header Material | Galvanized Steel |
| Gasket Location | None |
| Gasket Material | None |
| Max. Velocity | 625 FPM |
| Media Color | White |
| Media Material | Fiberglass |
| Media Separator Construction | Glue |
| Nominal Filter Size | 24" x 24" x 12" |
| Performance Rating | MERV 14 |
| Recommended Final Resistance | 1.5 in. wc |
| Removes Particles Down To | 0.3 µm to 1 µm |
| Standards | ASHRAE 52.2-2015 |
| Style - Air Filters | Box |
| Ship weight (kg) | 8.17 |
| Ship height (cm) | 60.96 |
| Ship length (cm) | 60.96 |
| Ship width (cm) | 30.48 |
| HS code | 9002208000 |
| Country of Origin | US |
