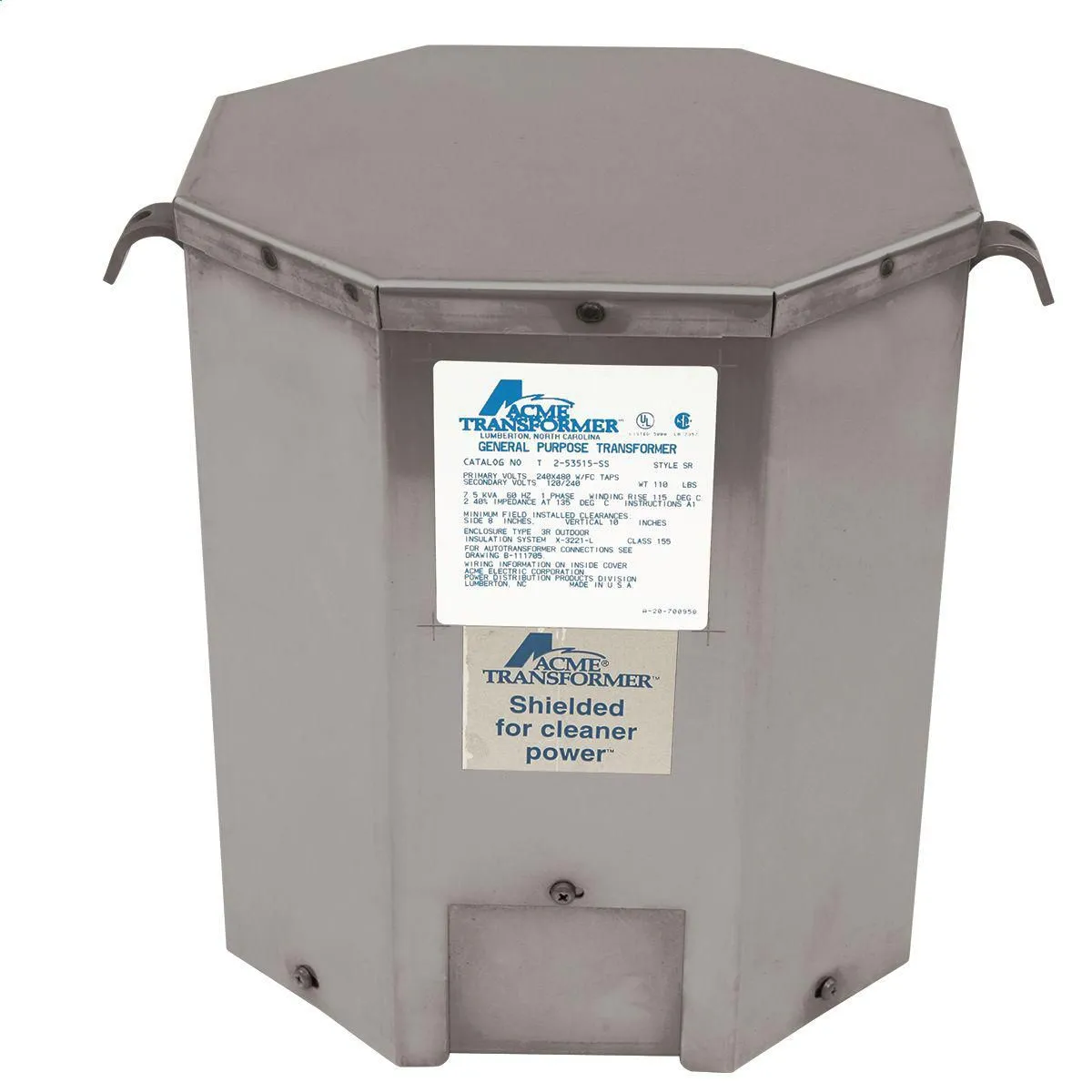

ACME ELECTRIC T253515SS Distribution Transformer, Low Voltage, Single Phase, 7.5kVA, 316 Stainless Steel
Get it by Wednesday, Jun 18
€2,453.93 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Transformer |
| Anfc Taps | 2 |
| Carton Quantity | 1 |
| Color | Gray |
| Construction | Encapsulated |
| Depth | 10 21/25" |
| Dimensions | 10.84" x 13.5" x 15.19" |
| Electrostatic Shield | Shielded |
| Enclosure Material | Stainless Steel |
| Enclosure Rating | NEMA 3R |
| Frequency | 60 Hz |
| Height | 15.19" |
| Input Voltage | 240/480V |
| Kva Rating | 7.5 kVA |
| Length | 10 21/25" |
| Max. Temp. | 115°C |
| Mounting Type | Wall |
| Nema Rating | NEMA 3R |
| Outdoor Rated - Transformer | Yes |
| Output Voltage | 120/240V |
| Primary Voltage | 240/480V |
| Secondary Voltage | 120/240V |
| Shielded / Unshielded | Shielded |
| Va Rating - Transformer | 7.5 kVA |
| Voltage Function - Transformer | Step Down |
| Width | 13 1/2" |
| Winding Material | Copper |
| Winding Material - Transformer | Aluminum |
| Enclosure Finish | Powder Polyurethane Paint |
| Includes Knockouts | No Knockouts |
| Ip Rating | IP14 |
| Mounting Location | Wall |
| Nema Enclosure Rating | 3R |
| Overall Depth | 10.84" |
| Overall Height | 15.19" |
| Overall Width | 13 1/2" |
| Phase | Single |
| Power Rating | 7.5 kVA |
| Sound Level | 40 dbA |
| Standards | CSA C22.2 NO. 47, UL 506 |
| Temperature Rise | 115°C |
| Voltage Function | Step Down |
| Ship weight (kg) | 51.75 |
| Ship height (cm) | 38.58 |
| Ship length (cm) | 27.53 |
| Ship width (cm) | 34.29 |
| Country of Origin | MX |
| Model | Construction | Depth | Height | Length | Max. Temp. | Mounting Type | Nema Rating | Temp. Rise | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| T153004 | - | 3.05" | 6.41" | - | - | - | - | 80 Degrees C | €102.87 | |
| T153005 | - | 3.67" | 7.16" | - | - | - | - | 80 Degrees C | €118.72 | |
| T153006 | - | 3.67" | 7.16" | - | - | - | - | 80 Degrees C | €126.59 | |
| T253008S | - | 4.2" | 9.06" | - | - | - | - | 115 Degrees C | €158.07 | |
| T253010S | - | 5.13" | 10.5" | - | - | - | - | 115 Degrees C | €262.07 | |
| T253011S | - | 5.13" | 11.62" | - | - | - | - | 115 Degrees C | €313.34 | |
| T253012S | - | 5.13" | 13" | - | - | - | - | 115 Degrees C | €708.95 |
