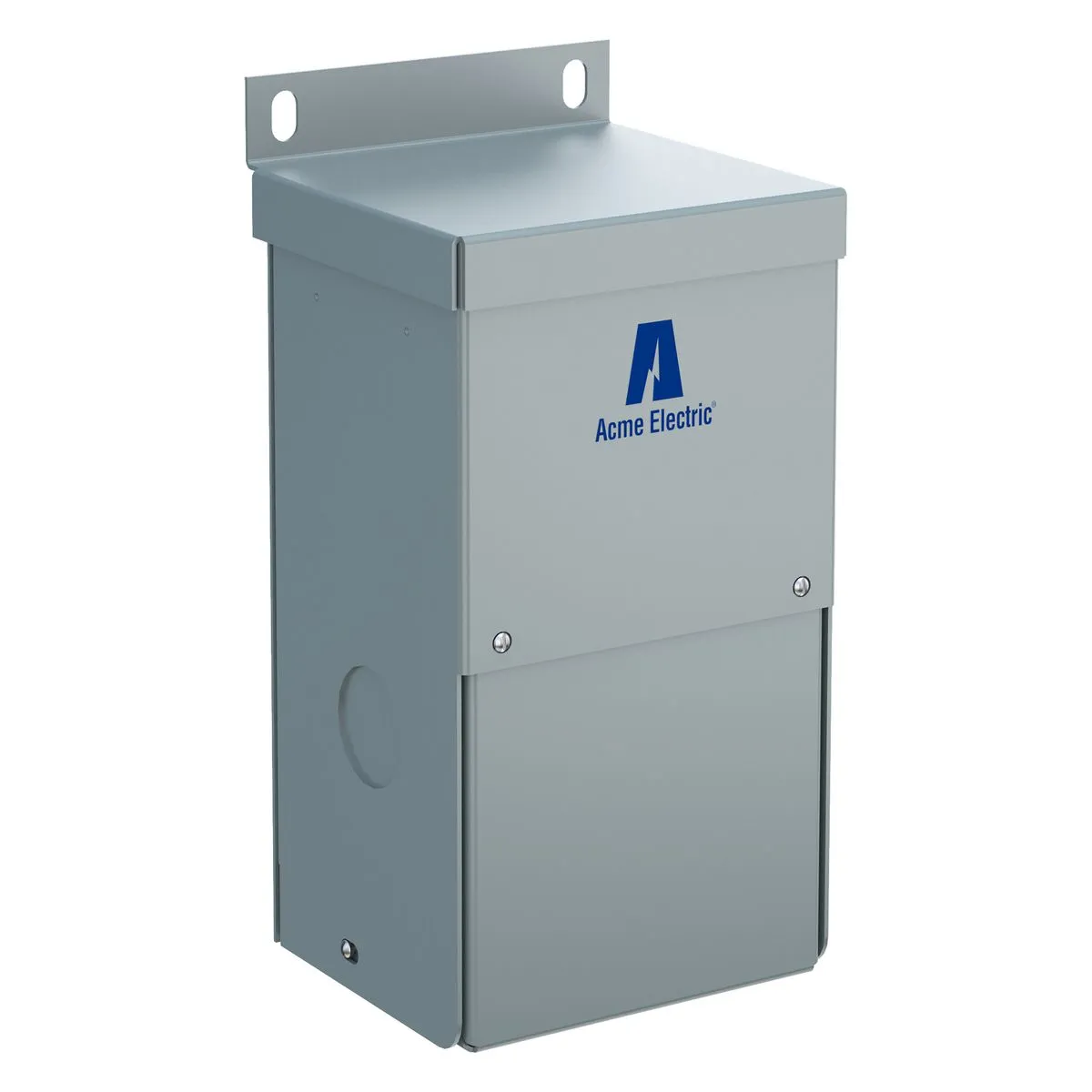

ACME ELECTRIC T153004 Distribution Transformer, Low Voltage, Single Phase, 0.05kVA
Get it by Tuesday, Jun 17
€122.27 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Transformer |
| Carton Quantity | 3 |
| Color | Gray |
| Depth | 3.05" |
| Dimensions | 3.05" x 3.14" x 6.41" |
| Enclosure Finish | Gray |
| Enclosure Material | Steel |
| Enclosure Rating | NEMA 3R |
| Enclosure Type | Indoor/Outdoor |
| Frequency | 60 Hz |
| Height | 6.41" |
| Indoor/outdoor | Indoor/Outdoor |
| Input Voltage | 240/480V AC |
| Knockout Size - Transformer | 1/2" |
| Kva Rating | 50 VA |
| Mounting Type | Wall |
| Outdoor Rated - Transformer | Yes |
| Output Voltage | 120/240V AC |
| Temp. Rise | 80°C |
| Va Rating | 50 VA |
| Va Rating - Transformer | 50 VA |
| Voltage Function - Transformer | Step Down |
| Width | 3.14" |
| Winding Material - Transformer | Copper |
| Includes Knockouts | Knockouts Included |
| Ip Rating | IP14 |
| Knockout Size | 7/8" |
| Mounting Location | Wall |
| Nema Enclosure Rating | 3R |
| Overall Depth | 3.05" |
| Overall Height | 6.41" |
| Overall Width | 3.14" |
| Phase | Single |
| Power Rating | 0.1 kVA |
| Sound Level | 40 dbA |
| Standards | CSA C22.2 NO. 47, UL 506 |
| Temperature Rise | 115°C |
| Voltage Function | Step Down |
| Winding Material | Copper |
| Ship weight (kg) | 1.8 |
| Ship height (cm) | 16.28 |
| Ship length (cm) | 7.75 |
| Ship width (cm) | 7.98 |
| HS code | 8504314065 |
| Country of Origin | CN |
| Product | Model | Construction | Depth | Height | Length | Max. Temp. | Mounting Type | Nema Rating | Temp. Rise | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
T153005 | - | 3.67" | 7.16" | - | - | - | - | 80 Degrees C | €118.72 | |
|
T153006 | - | 3.67" | 7.16" | - | - | - | - | 80 Degrees C | €126.59 | |
 |
T253008S | - | 4.2" | 9.06" | - | - | - | - | 115 Degrees C | €158.07 | |
|
T253010S | - | 5.13" | 10.5" | - | - | - | - | 115 Degrees C | €262.07 | |
|
T253011S | - | 5.13" | 11.62" | - | - | - | - | 115 Degrees C | €313.34 | |
|
T253012S | - | 5.13" | 13" | - | - | - | - | 115 Degrees C | €708.95 | |
 |
T253013S | - | 7.1" | 11.5" | - | - | - | - | 115 Degrees C | €505.62 |
