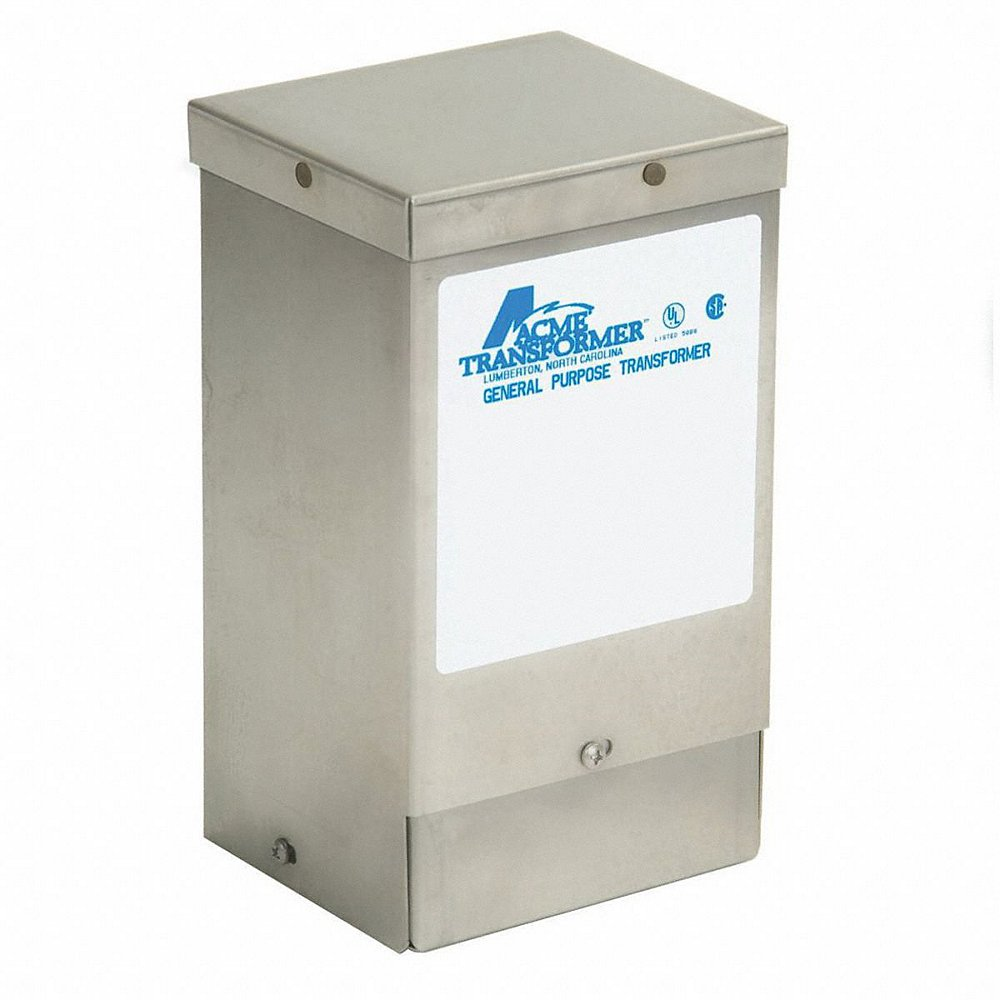

ACME ELECTRIC T253013SS Distribution Transformer, Low Voltage, Single Phase, 3kVA, 316 Stainless Steel
Get it by Monday, Jun 16
€1,641.24 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Transformer |
| Construction | Encapsulated |
| Enclosure Rating | NEMA 3R |
| Frequency | 60 Hz |
| Height | 11 1/2" |
| Input Voltage | 240/480V |
| Kva Rating | 3 kVA |
| Length | 7.13" |
| Max. Temp. | 115°C |
| Mounting Type | Wall |
| Nema Rating | NEMA 3R |
| Output Voltage | 120/240V |
| Primary Voltage | 240/480V |
| Secondary Voltage | 120/240V |
| Shielded / Unshielded | Shielded |
| Width | 10.31" |
| Winding Material | Copper |
| Ship weight (kg) | 24.75 |
| Ship height (cm) | 29.21 |
| Ship length (cm) | 18.11 |
| Ship width (cm) | 26.19 |
| Country of Origin | US |
| Model | Construction | Depth | Height | Length | Max. Temp. | Mounting Type | Nema Rating | Temp. Rise | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| T153004 | - | 3.05" | 6.41" | - | - | - | - | 80 Degrees C | €102.87 | |
| T153005 | - | 3.67" | 7.16" | - | - | - | - | 80 Degrees C | €118.72 | |
| T153006 | - | 3.67" | 7.16" | - | - | - | - | 80 Degrees C | €126.59 | |
| T253008S | - | 4.2" | 9.06" | - | - | - | - | 115 Degrees C | €158.07 | |
| T253010S | - | 5.13" | 10.5" | - | - | - | - | 115 Degrees C | €262.07 | |
| T253011S | - | 5.13" | 11.62" | - | - | - | - | 115 Degrees C | €313.34 | |
| T253012S | - | 5.13" | 13" | - | - | - | - | 115 Degrees C | €708.95 |
