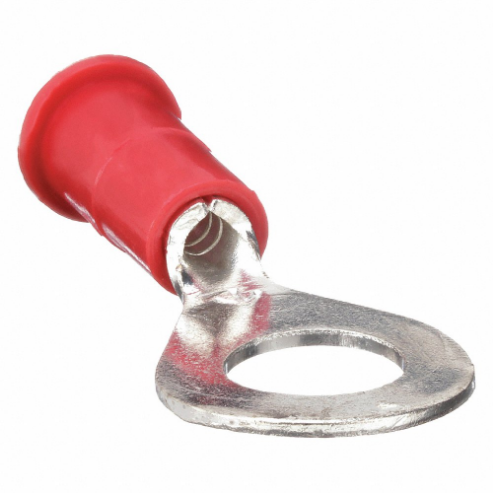

| Item | Ring Terminal |
| Connection Material | Copper |
| Insulation Color | Red |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Max. Temp. | 221°F |
| Max. Voltage | 1000V |
| Overall Length | 1 2/25" |
| Seam | Butted |
| Stud Size | 1/4" |
| Terminal Connection | Crimp |
| Terminal Connection Type | Crimp |
| Contact Material | Copper |
| Maximum Operating Temperature | 221°F |
| Maximum Voltage | 1000V |
| Maximum Wire Size | 18 AWG |
| Minimum Wire Size | 22 AWG |
| Seam Style | Butted |
| Standards | CSA CERTIFIED, UL LISTED |
| Tongue Width | 0.47" |
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 2.74 |
| Ship width (cm) | 0.64 |
| HS code | 8536904000 |
| Country of Origin | US |
| Model | Overall Length | Stud Size | Wire Range | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|
| 7000133671 | 1.03" | #10 | 12 to 10 AWG | 25 | €22.23 | |
| 7000133672 | 1.26" | 1/4" | 12 to 10 AWG | 25 | €24.81 | |
| 7000133673 | 1.26" | 3/8" | 12 to 10 AWG | 25 | €22.42 | |
| 7000133674 | 1.26" | 5/16" | 12 to 10 AWG | 25 | €21.03 | |
| 7000133675 | 0.84" | #8 | 12 to 10 AWG | 25 | €22.28 | |
| 7000133676 | 0.9" | #10 | 16 to 14 AWG | 25 | €15.29 | |
| 7000133677 | 1.08" | 1/4" | 16 to 14 AWG | 25 | €15.34 |
