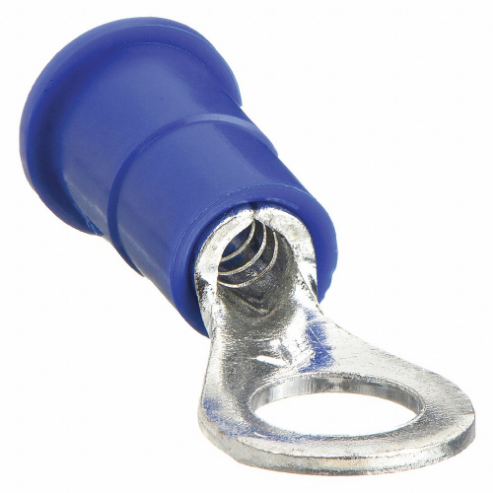

| Item | Ring Terminal |
| Color Code | Blue |
| Connection Material | Copper |
| Connection Type | Crimp |
| Insulation Color | Blue |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Maximum Wire Size | 14 AWG |
| Min. Wire Size | 16 AWG |
| Overall Length | 4/5" |
| Seam | Butted |
| Seam Style | Butted |
| Stud Size | #6 |
| Terminal Connection | Crimp |
| Terminal Connection Type | Crimp |
| Terminal Type | Standard |
| Termination Style | Crimp |
| Contact Material | Copper |
| Maximum Operating Temperature | 221°F |
| Maximum Voltage | 600V |
| Minimum Wire Size | 16 AWG |
| Standards | CSA CERTIFIED, UL LISTED |
| Tongue Width | 1/4" |
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 7.37 |
| Ship length (cm) | 2.03 |
| Ship width (cm) | 4.32 |
| HS code | 8536904000 |
| Country of Origin | US |
| Product | Model | Color Code | Insulation Type | Max. Temp. | Overall Length | Seam | Stud Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
M14-10RK | Bare | Noninsulated | 347 Degrees F | 0.7" | Brazed | #10 | 1 | €433.55 | |
 |
M14-6R/SK | Bare | Noninsulated | 347 Degrees F | 0.6" | Brazed | #6 | 1 | €399.16 | |
 |
M14-8R/LK | Bare | Noninsulated | 347 Degrees F | 0.74" | Brazed | #8 | 1 | €421.23 | |
 |
M14-10R/LK | Bare | Noninsulated | 347 Degrees F | 0.74" | Brazed | #10 | 1 | €413.02 | |
 |
MVU14-10RK | Blue | Vinyl | 221 Degrees F | 0.9" | Butted | #10 | 1 | €483.66 | |
 |
MVU14-6R/SK | Blue | Vinyl | 221 Degrees F | 0.8" | Butted | #6 | 1 | €533.91 | |
 |
M14-14R/SK | Bare | Noninsulated | 347 Degrees F | 0.89" | Brazed | 1/4" | 1 | €534.52 |
