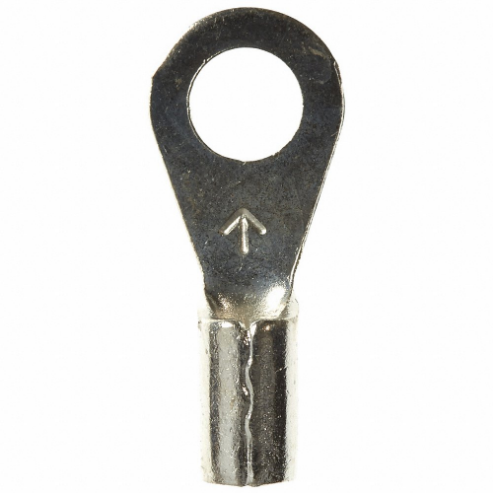

| Item | Ring Terminal |
| Barrel Inside Diameter | 0.09" |
| Color Code | Bare |
| Connection Material | Copper |
| Connection Type | Crimp |
| Hole Spacing | 0.33" |
| Insulation Color | Bare |
| Insulation Type | Non Insulated |
| Max. Temp. | 347°F |
| Max. Voltage | 600V |
| Maximum Wire Size | 14 AWG |
| Min. Wire Size | 16 AWG |
| Overall Length | 0.74" |
| Rohs Compliant | Yes |
| Seam | Brazed |
| Seam Style | Brazed |
| Special Features | Beveled Mouth, Corrosion-Resistant, Reliable Performance, Secure Fit |
| Stud Size | #8 |
| Terminal Connection | Crimp |
| Terminal Connection Type | Crimp |
| Terminal Shape | Standard Ring Tongue |
| Terminal Type | Standard |
| Termination Style | Crimp |
| Barrel Length | 0.25" |
| Barrel Style | Brazed |
| Contact Finish | Tin |
| Contact Material | Copper |
| Insulation | None |
| Insulation Coverage | None |
| Maximum Operating Temperature | 347°F |
| Maximum Voltage | 1000V |
| Minimum Wire Size | 16 AWG |
| Standards | CSA CERTIFIED, UL LISTED |
| Termination | Crimp Termination Only |
| Tongue Length | 0.49" |
| Tongue Thickness | 0.03" |
| Tongue Width | 0.31" |
| Ship weight (kg) | 0.88 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 1.88 |
| Ship width (cm) | 2.54 |
| HS code | 8536904000 |
| Country of Origin | US |
| Product | Model | Color Code | Insulation Type | Max. Temp. | Overall Length | Seam | Stud Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
M14-10RK | Bare | Noninsulated | 347 Degrees F | 0.7" | Brazed | #10 | 1 | €433.55 | |
 |
M14-6R/SK | Bare | Noninsulated | 347 Degrees F | 0.6" | Brazed | #6 | 1 | €399.16 | |
 |
M14-10R/LK | Bare | Noninsulated | 347 Degrees F | 0.74" | Brazed | #10 | 1 | €413.02 | |
 |
MVU14-10RK | Blue | Vinyl | 221 Degrees F | 0.9" | Butted | #10 | 1 | €483.66 | |
 |
MVU14-6R/SK | Blue | Vinyl | 221 Degrees F | 0.8" | Butted | #6 | 1 | €533.91 | |
 |
M14-14R/SK | Bare | Noninsulated | 347 Degrees F | 0.89" | Brazed | 1/4" | 1 | €534.52 | |
 |
M14-516R/SK | Bare | Noninsulated | 347 Degrees F | 0.89" | Brazed | 5/16" | 1 | €506.16 |
