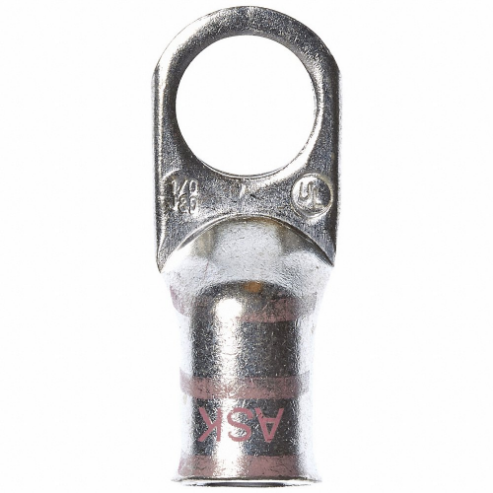

| Item | Ring Terminal |
| Barrel Inside Dia. | 0.41" |
| Barrel Length | Short |
| Barrel Size | Short |
| Barrel Style | Seamless |
| Color Code | Pink , Red |
| Connector Type | Seamless Barrel , Straight Barrel |
| Contact Finish | Tin |
| For Conductor Material | Copper |
| For Stud Size | 1/2" |
| For Wire Type | Stranded |
| Hole Center To End | 0.38" |
| Inspection Hole | No |
| Length | 1.9" |
| Length (straight Wireway) | 1.9" |
| Material | Copper |
| Peep Hole | No |
| Plate Material | Tin |
| Rohs Compliant | Yes |
| Seam Style | Seamless |
| Special Features | Non-Insulated Construction |
| Stud Size | 1/2" |
| Style | Ring |
| Termination Style | Crimp |
| Tongue Angle | Straight |
| Tongue Style | Ring |
| Barrel Id | 0.41" |
| Connection Orientation | Straight |
| Die Code | 12, 99 |
| Maximum Wire Size | 1/0 AWG |
| Number Of Holes | 1 |
| Overall Length | 1.84" |
| Overall Width | 3/4" |
| Standards | CSA CERTIFIED, UL LISTED |
| Strip Length | 5/8" |
| Tongue Length | 1.25" |
| Tongue Thickness | 0.1" |
| Tongue Width | 0.75" |
| Ship weight (kg) | 2.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 4.67 |
| Ship width (cm) | 1.91 |
| HS code | 8536904000 |
| Country of Origin | US |
| Product | Model | Length | Stud Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|
 |
MC1/0-14RX | 1.83" | 1/4" | 100 | €990.22 | |
 |
MC1/0-38RX | 1.9" | 3/8" | 100 | €1,099.65 |
