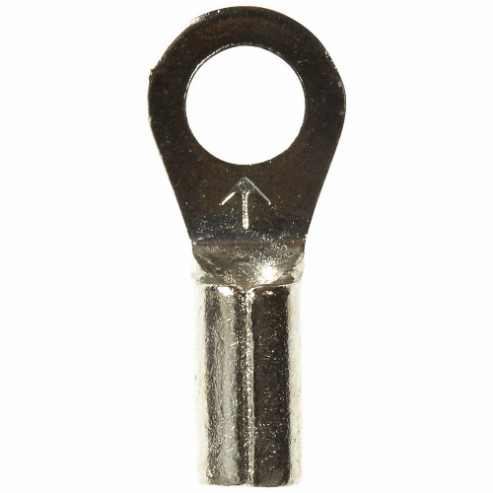

| Item | Ring Terminal |
| Barrel Inside Diameter | 0.07" |
| Color Code | Bare |
| Connection Material | Copper |
| Connection Type | Crimp |
| Connection Width | 0.138" |
| Hole Spacing | 0.22" |
| Insulation Color | Bare |
| Insulation Type | Non Insulated |
| Max. Temp. | 347°F |
| Max. Voltage | 600V |
| Maximum Wire Size | 18 AWG |
| Min. Wire Size | 22 AWG |
| Overall Length | 3/5" |
| Rohs Compliant | Yes |
| Seam | Brazed |
| Seam Style | Brazed |
| Special Features | Beveled Mouth, Corrosion-Resistant, Reliable Performance, Secure Fit |
| Stud Size | #6 |
| Terminal Connection | Crimp |
| Terminal Connection Type | Crimp |
| Terminal Shape | Standard Ring Tongue |
| Terminal Type | Standard |
| Termination Style | Crimp |
| Barrel Length | 0.25" |
| Barrel Style | Brazed |
| Contact Finish | Tin |
| Contact Material | Copper |
| Insulation | None |
| Insulation Coverage | None |
| Maximum Operating Temperature | 347°F |
| Maximum Voltage | 1000V |
| Minimum Wire Size | 22 AWG |
| Standards | CSA CERTIFIED, UL LISTED |
| Termination | Crimp Termination Only |
| Tongue Length | 0.35" |
| Tongue Thickness | 0.03" |
| Tongue Width | 1/4" |
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 8.64 |
| Ship length (cm) | 1.52 |
| Ship width (cm) | 6.86 |
| HS code | 8536904000 |
| Country of Origin | US |
| Product | Model | Color Code | Insulation Type | Max. Temp. | Overall Length | Seam | Stud Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
MVU18-6RSX | Red | Vinyl | 221 Degrees F | 0.8" | Butted | #6 | 100 | €60.10 | |
 |
MVU18-38RK | Red | Vinyl | 221 Degrees F | 1.13" | Butted | 3/8" | 1 | €903.67 | |
 |
MVU18-6R/SK | Red | Vinyl | 221 Degrees F | 0.8" | Butted | #6 | 1 | €477.70 | |
 |
M18-8R/LK | Bare | Noninsulated | 347 Degrees F | 0.74" | Brazed | #8 | 1 | €458.77 | |
 |
MVU18-10R/LK | Red | Vinyl | 221 Degrees F | 0.93" | Butted | #10 | 1 | €496.76 | |
 |
M18-6R/SK | Bare | Noninsulated | 347 Degrees F | 0.6" | Brazed | #6 | 1 | €373.07 | |
 |
M18-10R/LK | Bare | Noninsulated | 347 Degrees F | 0.74" | Brazed | #10 | 1 | €374.66 |
