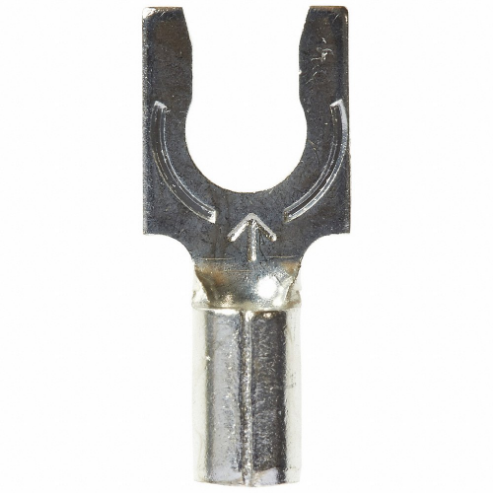

| Item | Fork Terminal |
| Color Code | Bare |
| Connection Material | Copper |
| Connection Type | Crimp , Lug |
| Insulation Color | Bare , Blue |
| Insulation Type | Non Insulated |
| Max. Temp. | 347°F |
| Max. Voltage | 600V |
| Maximum Wire Size | 14 AWG |
| Min. Wire Size | 16 AWG |
| Overall Length | 0.7" |
| Rohs Compliant | Yes |
| Seam | Brazed |
| Seam Style | Brazed |
| Stud Size | #8 |
| Terminal Connection | Crimp |
| Terminal Shape | Standard Fork |
| Terminal Type | Standard |
| Termination Style | Crimp |
| Wire Size | 16 AWG to 14 AWG |
| Barrel Length | 0.25" |
| Contact Finish | Tin |
| Contact Material | Copper |
| Insulation Coverage | None |
| Insulation Material | None |
| Maximum Operating Temperature | 347°F |
| Maximum Voltage | 600V |
| Minimum Wire Size | 16 AWG |
| Standards | CSA CERTIFIED, UL LISTED |
| Termination | Crimp Termination Only |
| Tongue Thickness | 0.03" |
| Tongue Width | 0.34" |
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 1.78 |
| Ship width (cm) | 6.35 |
| HS code | 8536698000 |
| Country of Origin | US |
| Product | Model | Connection Material | Connection Type | Max. Temp. | Overall Length | Seam | Stud Size | Terminal Type | Wire Range | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M10-8FX | Copper | Lug | 347 Degrees F | 0.73" | Brazed | #8 | Standard | 12 to 10 AWG | 50 | €65.77 | |
 |
M10-8FK | Copper | Lug | 347 Degrees F | 0.73" | Brazed | #8 | Standard | 12 to 10 AWG | 500 | €318.43 | |
 |
7100164121 | Copper | Crimp | 347 Degrees F | 0.73" | Brazed | #10 | Block | 12 to 10 AWG | 500 | €412.52 | |
 |
M10-10FK | Copper | Lug | 347 Degrees F | 0.73" | Brazed | #10 | Standard | 12 to 10 AWG | 500 | €284.98 | |
 |
7100164062 | Nickel-Plated Steel | Lug | 900 Degrees F | 0.65" | Butted | #6 | Block | 16 to 14 AWG | 1 | €408.12 | |
 |
7100164023 | Copper | Lug | 347 Degrees F | 0.65" | Butted | #8 | Block | 16 to 14 AWG | 1 | €193.25 | |
 |
M14-10FK | Copper | Lug | 347 Degrees F | 0.7" | Brazed | #10 | Standard | 16 to 14 AWG | 1 | €435.19 |
