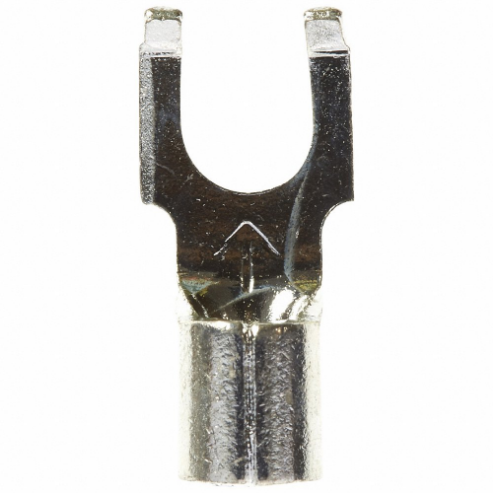

| Item | Fork Terminal |
| Color Code | Bare |
| Connection Material | Copper |
| Connection Type | Crimp |
| Insulation Color | Bare |
| Insulation Type | Non Insulated |
| Max. Temp. | 347°F |
| Max. Voltage | 600V |
| Overall Length | 0.73" |
| Seam | Brazed |
| Stud Size | #10 |
| Terminal Type | Block |
| Wire Size | 12 AWG to 10 AWG |
| Barrel Length | 0.25" |
| Contact Finish | Tin |
| Contact Material | Copper |
| Insulation Coverage | None |
| Insulation Material | None |
| Maximum Operating Temperature | 347°F |
| Maximum Voltage | 600V |
| Maximum Wire Size | 10 AWG |
| Minimum Wire Size | 12 AWG |
| Rohs Compliant | Yes |
| Seam Style | Brazed |
| Special Features | Beveled Mouth Offers Easy Insertion of Wires |
| Standards | CSA CERTIFIED, UL LISTED |
| Terminal Shape | Flanged Block Fork |
| Termination | Crimp Termination Only |
| Termination Style | Crimp |
| Tongue Thickness | 0.04" |
| Tongue Width | 0.32" |
| Ship weight (kg) | 0.63 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 1.85 |
| Ship width (cm) | 2.54 |
| HS code | 8536698000 |
| Country of Origin | US |
