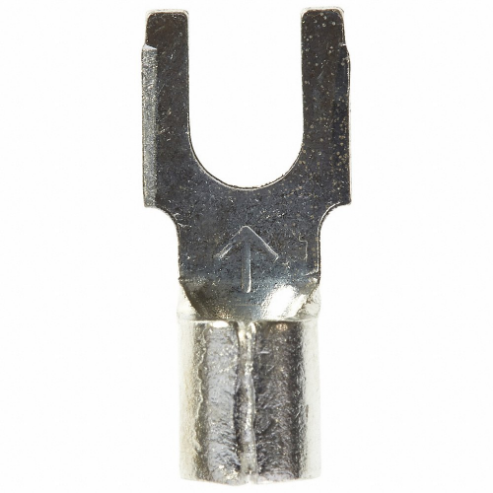

| Item | Fork Terminal |
| Barrel Inside Diameter | 0.135" |
| Clearance | 0.29" |
| Color Code | Bare |
| Connection Material | Copper |
| Connection Type | Crimp , Lug |
| Dimension E | 0.54" |
| Insulation Color | Bare , Yellow |
| Insulation Type | Non Insulated |
| Max. Temp. | 347°F |
| Max. Voltage | 600V |
| Maximum Wire Size | 10 AWG |
| Min. Wire Size | 12 AWG |
| Overall Length | 0.73" |
| Rohs Compliant | Yes |
| Seam | Brazed |
| Seam Style | Brazed |
| Special Features | Beveled Mouth Offers Easy Insertion Of Wires |
| Stud Diameter | 0.164" |
| Stud Size | #8 |
| Terminal Connection | Crimp |
| Terminal Shape | Block Fork |
| Terminal Type | Block |
| Termination Style | Crimp |
| Wire Size | 12 AWG to 10 AWG |
| Barrel Length | 0.25" |
| Contact Finish | Tin |
| Contact Material | Copper |
| Insulation Coverage | None |
| Insulation Material | None |
| Maximum Operating Temperature | 347°F |
| Maximum Voltage | 600V |
| Minimum Wire Size | 12 AWG |
| Standards | CSA CERTIFIED, UL LISTED |
| Termination | Crimp Termination Only |
| Tongue Thickness | 0.04" |
| Tongue Width | 0.32" |
| Ship weight (kg) | 4.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 1.85 |
| Ship width (cm) | 2.54 |
| HS code | 8536698000 |
| Country of Origin | US |
| Product | Model | Overall Length | Stud Size | Wire Range | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|
 |
7010399914 | 0.65" | #8 | 22 to 18 AWG | 100 | €79.77 | |
 |
7100044405 | 0.65" | #8 | 16 to 14 AWG | 100 | €99.92 | |
 |
7010399923 | 0.65" | #10 | 16 to 14 AWG | 100 | €83.60 | |
 |
7010351132 | 0.73" | #8 | 12 to 10 AWG | 50 | €54.02 | |
 |
7010399939 | 0.73" | #10 | 12 to 10 AWG | 50 | €60.06 | |
 |
7100164110 | 0.73" | #6 | 12 to 10 AWG | 500 | €274.57 | |
 |
7100163948 | 0.65" | #8 | 22 to 18 AWG | 1 | €416.82 |
