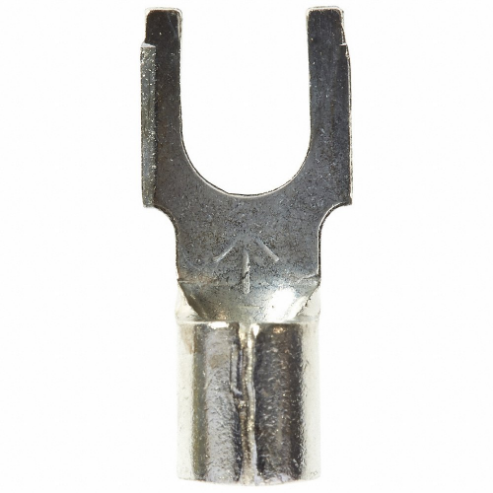

3M M10-10FBX Fork Terminal Bare 12 To 10 Awg, 50 Pk | AA9JZQ 1DMD7

3M 7010399939 M10-10FBX Fork Terminal, Yellow, #10 Stud Size, 50 PK

Item: AA9JZQModel: 7010399939Cross Ref: 1DMD7 / M10-10FBX

See variants (14)

In Stock

Get it by Tuesday, Jun 17

€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€60.06 /unit

Add To Cart

Request a Quote

Payment

Product Specifications:

Item	Fork Terminal
Barrel Inside Diameter	0.135"
Clearance	0.29"
Color Code	Bare
Connection Material	Copper
Connection Type	Crimp , Lug
Dimension E	0.54"
Insulation Color	Bare , Yellow
Insulation Type	Non Insulated
Max. Temp.	347°F
Max. Voltage	600V
Maximum Wire Size	10 AWG
Min. Wire Size	12 AWG
Overall Length	0.73"
Rohs Compliant	Yes
Seam	Brazed
Seam Style	Brazed
Special Features	Beveled Mouth Offers Easy Insertion Of Wires
Stud Diameter	0.19"
Stud Size	#10
Terminal Connection	Crimp
Terminal Shape	Block Fork
Terminal Type	Block
Termination Style	Crimp
Wire Size	12 AWG to 10 AWG
Barrel Length	0.25"
Contact Finish	Tin
Contact Material	Copper
Insulation Coverage	None
Insulation Material	None
Maximum Operating Temperature	347°F
Maximum Voltage	600V
Minimum Wire Size	12 AWG
Standards	CSA CERTIFIED, UL LISTED
Termination	Crimp Termination Only
Tongue Thickness	0.04"
Tongue Width	0.32"

Shipping Info:

Ship weight (kg)	0.07
Ship height (cm)	7.11
Ship length (cm)	1.85
Ship width (cm)	5.33
HS code	8536904000
Country of Origin	US

Product Variants

Model	Overall Length	Stud Size	Wire Range	Pkg. Qty.	Price
7010399914	0.65"	#8	22 to 18 AWG	100	€79.77
7100044405	0.65"	#8	16 to 14 AWG	100	€99.92
7010399923	0.65"	#10	16 to 14 AWG	100	€83.60
7010351132	0.73"	#8	12 to 10 AWG	50	€54.02
7100164110	0.73"	#6	12 to 10 AWG	500	€274.57
7100163948	0.65"	#8	22 to 18 AWG	1	€416.82
7100164112	0.73"	#10	12 to 10 AWG	500	€274.30
