| Item | Female Disconnect |
| Barrel Inside Dia. | 0.085" |
| Barrel Length | 1/4" |
| Barrel Style | Butted |
| Color Code | Blue |
| Connection Type | Crimp |
| Fastener Orientation | Female |
| Insulation | Full |
| Insulation Color | Blue |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Length | 0.81" |

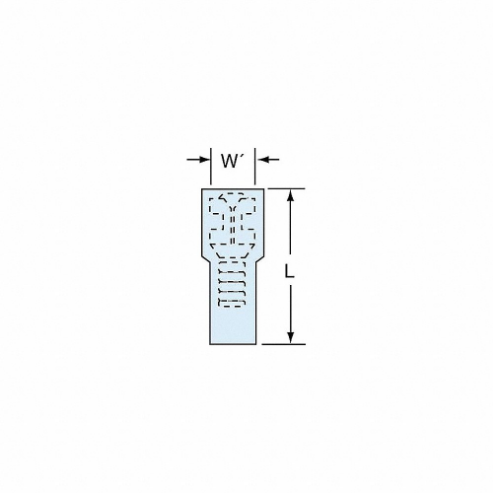

| Mates With Male Tab Width (w') | 0.187" |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Maximum Insulation Outer Diameter | 0.145" |
| Overall Length | 0.81" |
| Pad Width | 0.187" |
| Seam | Butted |
| Tab Size | 0.032" x 0.187" |
| Terminal Style | Fully Insulated |
| Terminal Type | Disconnect |
| Thickness | 0.02" |
| Width | 0.3" |
| Wire Size | 16 AWG to 14 AWG |
| Barrel Id | 0.085" |
| Connection Material | Tin Plated Brass |
| Maximum Temperature | 221°F |
| Maximum Voltage | 600V |
| Standards | CSA CERTIFIED, ROHS COMPLIANT, UL LISTED |
| Wire Range | 16 AWG to 14 AWG |
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 2.06 |
| Ship width (cm) | 1.27 |
| HS code | 8536904000 |
| Country of Origin | US |
| Product | Model | Barrel Inside Dia. | Color Code | Overall Length | Tab Size | Wire Range | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
FDI10-250Q | 0.128" | Yellow | 0.99" | 0.032" x 0.250" | 12 to 10 AWG | 25 | €25.82 | |
 |
FDI14-250Q | 0.08" | Blue | 0.87" | 0.020" x 0.110" | 16 to 14 AWG | 25 | €20.45 | |
 |
FDI18-187Q | 0.085" | Red | 0.81" | 0.020" x 0.187" | 22 to 18 AWG | 25 | €18.22 | |
 |
FDI18-250Q | 0.08" | Red | 0.87" | 0.032" x 0.250" | 22 to 18 AWG | 25 | €19.44 |
